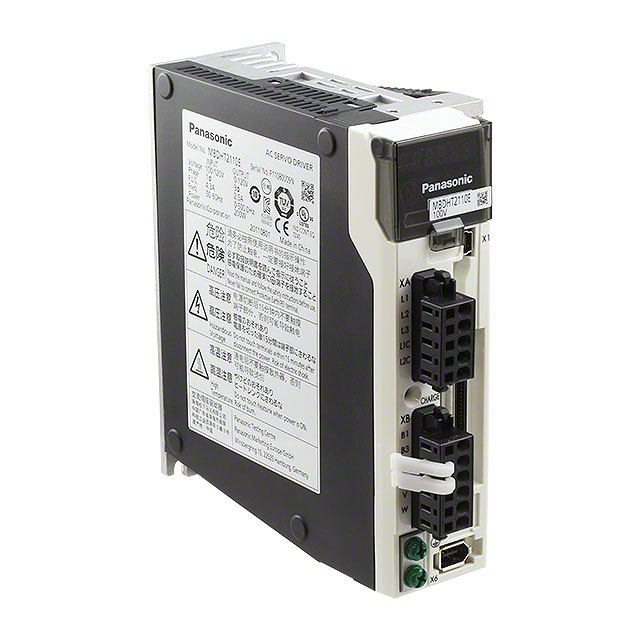

MBDHT2110E

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 15A 120V LOAD

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 15A 120V LOAD

Technical Specifications

Parameters and characteristics for this part

Specification	MBDHT2110E

Control / Drive Type	Servo AC
Current - Output	15 A
For Use With/Related Products	MINAS A5 Series
Interface	USB, RS-485, RS-232
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	120 V
Voltage - Supply [Max]	120 VAC
Voltage - Supply [Min]	100 VAC
Wattage - Load	400 W
Weight	1 kg
Weight	2.3 lbs

Part	Mounting Type	Weight	Weight	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Voltage - Load	Type	Wattage - Load	Motor Type	Control / Drive Type	For Use With/Related Products
Panasonic Industrial Automation Sales MBDHT2110	Chassis Mount	1 kg	2.3 lbs	15 A	100 VAC	120 VAC	RS-232 RS-485 USB	120 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2510BA1	Chassis Mount	1 kg	2.3 lbs	15 A	200 VAC	240 VAC	EtherCat USB	240 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2110B01	Chassis Mount	1 kg	2.3 lbs	15 A	100 VAC	120 VAC	EtherCat USB	120 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2510	Chassis Mount	1 kg	2.3 lbs	15 A	200 VAC	240 VAC	RS-232 RS-485 USB	240 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2510LA1	Chassis Mount	1 kg	2.3 lbs	15 A	200 VAC	240 VAC	RS-232 RS-485 USB	240 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2510L01	Chassis Mount	1 kg	2.3 lbs	15 A	200 VAC	240 VAC	RS-232 RS-485 USB	240 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2510CA1	Chassis Mount	1 kg	2.3 lbs	15 A	200 VAC	240 VAC	RS-232 RS-485 USB	240 V	Module	400 W	Servo	Servo AC	MINAS A5 Series
Panasonic Industrial Automation Sales MBDHT2110E	Chassis Mount	1 kg	2.3 lbs	15 A	100 VAC	120 VAC	RS-232 RS-485 USB	120 V	Module	400 W	Servo	Servo AC	MINAS A5 Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Servo AC 100 ~ 120VAC Supply 15A 120V Load
