3099-18-1-0500-006-1-TS

Obsolete

CnC Tech, LLC

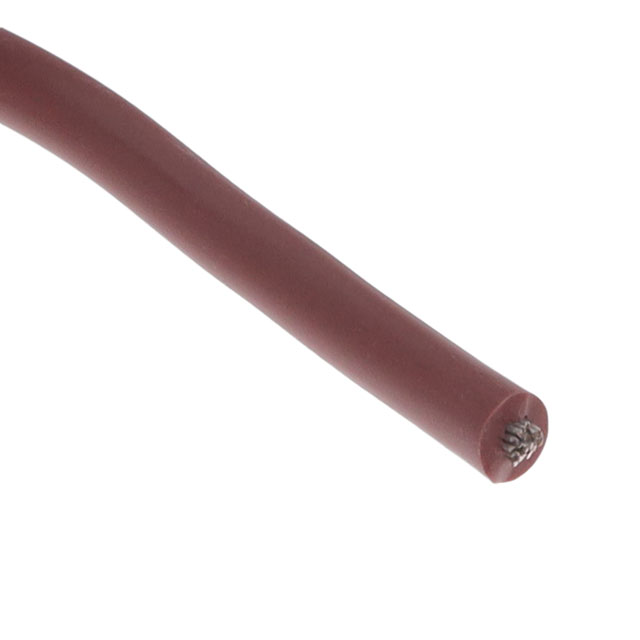

HOOK-UP STRND 18AWG BRN 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3099-18-1-0500-006-1-TS

Obsolete

CnC Tech, LLC

HOOK-UP STRND 18AWG BRN 500'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3099-18-1-0500-006-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34
Conductor Strand [diameter]	0.0071 in
Features	Oil Resistant, High Temperature
Jacket (Insulation) Diameter [diameter]	0.112 in
Jacket (Insulation) Diameter [diameter]	2.84 mm
Jacket (Insulation) Material	Silicone Rubber
Jacket (Insulation) Thickness	0.8 mm
Jacket (Insulation) Thickness	0.031 in
Jacket Color	Brown
Length [x]	500 ', 25 ft
Length [x]	152.4 m, 7.62 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3099
Voltage	300 V
Wire Gauge	18 AWG

3099-18 Series

Part	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Material	Features	Jacket (Insulation) Material	Length	Length	Length [x]	Length [x]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Cable Type	Jacket Color
CnC Tech, LLC 3099-18-1-0500-002-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	76.2 m	30.5 m	100 ft	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up
CnC Tech, LLC 3099-18-1-0500-008-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	7.62 m 30.5 m	25 ft 50 ft 100 ft	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Orange
CnC Tech, LLC 3099-18-1-0500-010-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	30.5 m	50 ft 100 ft	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Violet
CnC Tech, LLC 3099-18-1-0500-005-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber		15.24 m	7.62 m 30.5 m	25 ft 50 ft 100 ft	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Blue
CnC Tech, LLC 3099-18-1-0500-004-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	7.62 m	25 ft 50 ft	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Red
CnC Tech, LLC 3099-18-1-0500-001-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Black
CnC Tech, LLC 3099-18-1-0500-003-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Yellow
CnC Tech, LLC 3099-18-1-0500-007-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Green
CnC Tech, LLC 3099-18-1-0500-006-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber			7.62 m 152.4 m	25 ft 500 '	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Brown
CnC Tech, LLC 3099-18-1-0500-011-1-TS	34	0.0071 in	0.8 mm	0.031 in	0.112 in	2.84 mm	300 V	Copper Tinned	High Temperature Oil Resistant	Silicone Rubber	3000 "	15.24 m 76.2 m	30.5 m 152.4 m	50 ft 100 ft 500 '	UL Style 3099	150 °C	-30 ░C	18 AWG	Hook-Up	Green Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 12.68
		2	$ 12.06
		4	$ 11.51
		10	$ 10.77
		20	$ 10.28
		40	$ 9.79
		100	$ 9.17
		200	$ 8.68
		400	$ 8.31

Description

General part information

3099-18 Series

18 AWG Hook-Up Wire 34/0.0071" Brown 300V 500.0' (152.4m)
