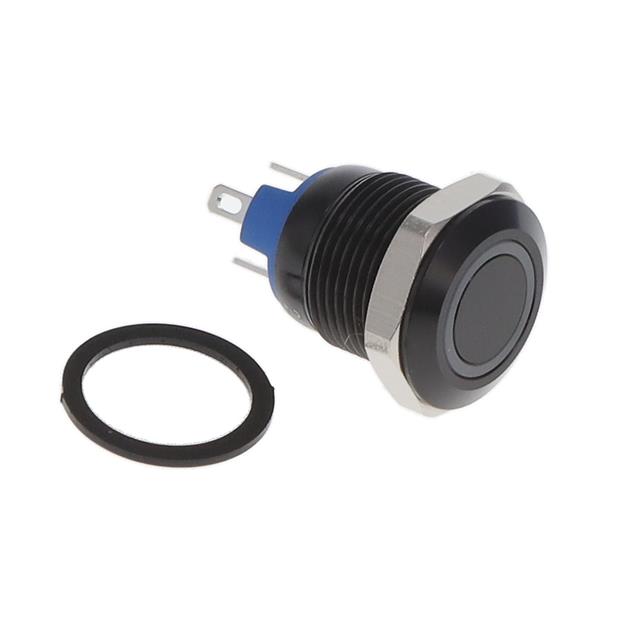

FHNBBBGN

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	FHNBBBGN

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3.3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Actuator Type	Ingress Protection	Current Rating (Amps)	Mounting Type	Mechanical Life	Termination Style	Circuit	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Actuator Marking	Illumination Voltage (Nominal)	Illumination Type, Color	Voltage Rating - DC	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type
CIT Relay and Switch FHNBBBRGN	Button Flush Round	IP67 - Dust Tight Waterproof	2 A	Panel Mount Front	100000 Cycles	Solder Lug	SPST	Black	12 mm	No Marking	2.1 VDC 3.3 VDC	Green/Red LED	48 V	50000 Cycles	55 °C	-25 °C	Off-On	Anti-Vandal Illuminated
CIT Relay and Switch FHNBBBGN	Button Flush Round	IP67 - Dust Tight Waterproof	2 A	Panel Mount Front	100000 Cycles	Solder Lug	SPST	Black	12 mm	No Marking	3.3 VDC	Green LED	48 V	50000 Cycles	55 °C	-25 °C	Off-Mom	Anti-Vandal Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
