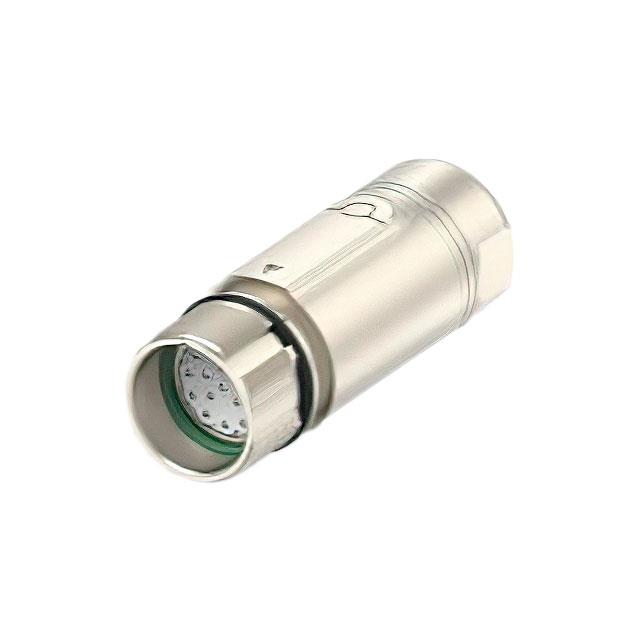

AKA558N00730255000

Active

TE Intercontec

CONN RCPT HSG MALE 19POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 19POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	AKA558N00730255000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-19
Shielding	Shielded
Type	For Male Pins

Part	Shell Material	Insert Material	Connector Type	Shielding	Shell Finish	Orientation	Housing Color	Material Flammability Rating	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Includes	Contact Shape	Type	Note	Fastening Type	Ingress Protection	Number of Positions
TE Intercontec AKA559N00730255000	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Nickel	Keyed	Silver	UL94 V-0	Backshell Cable Clamp	Free Hanging (In-Line)	-20 C	130 °C	M23-19	1 Backshell 1 Cable Clamp 1 Connector	Circular	For Male Pins	Contacts Not Included	Push-Twist	IP66/IP67	19
TE Intercontec AKA558N00730255000	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Nickel	Keyed	Silver	UL94 V-0	Backshell Cable Clamp	Free Hanging (In-Line)	-20 C	130 °C	M23-19	1 Backshell 1 Cable Clamp 1 Connector	Circular	For Male Pins	Contacts Not Included	Push-Twist	IP66/IP67	19
TE Intercontec AKA559N00610200000	Zinc Die Cast	Polybutylene Terephthalate (PBT)	Receptacle Housing	Shielded	Nickel	Keyed	Silver	UL94 V-0	Backshell Cable Clamp	Free Hanging (In-Line)	-20 C	130 °C	M23-19	1 Backshell 1 Cable Clamp 1 Connector	Circular	For Male Pins	Contacts Not Included	Push-Twist	IP66/IP67	19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
