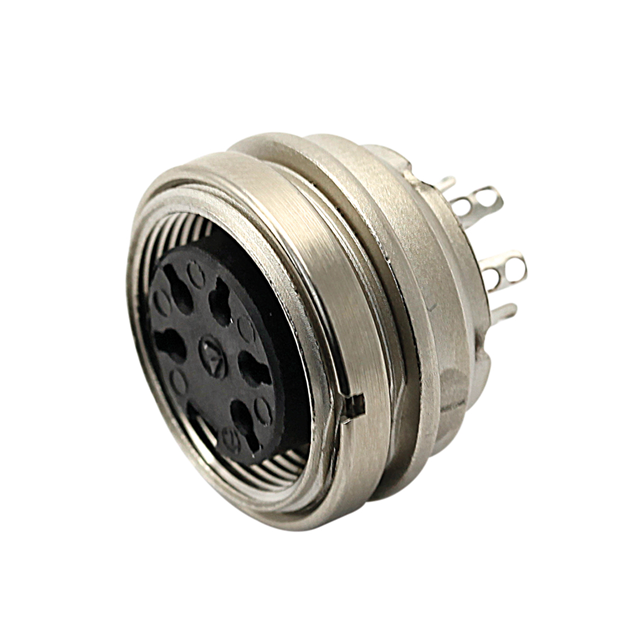

T 3263 150

Active

Amphenol Sine Systems Corp

REAR MOUNTING FEMALE RECEPTACLE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

REAR MOUNTING FEMALE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3263 150

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Includes	1 Nut, 1 Connector
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded
Type	For Female Sockets

Part	Type	Shell Finish	Includes	Orientation	Insert Material	Note	Connector Type	Contact Type	Material Flammability Rating	Shielding	Mounting Feature	Ingress Protection	Housing Color	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shell Size - Insert	Contact Size
Amphenol Sine Systems Corp T 3263 150	For Female Sockets	Nickel	1 Connector 1 Nut	Keyed	Thermoplastic	Contacts Not Included	Receptacle Housing	Crimp	UL94 V-0	Shielded	Bulkhead - Front Side Nut	IP40	Silver	Circular	100 °C	-40 °C	Die Cast	M16-3	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.30

General part information

3 Position Circular Connector Receptacle Housing Panel Mount
