ALM-GA002-BLKG
ObsoleteBroadcom Limited
IC AMP GPS 900MHZ-2.4GHZ 6MCOB
Deep-Dive with AI
Search across all available documentation for this part.
ALM-GA002-BLKG
ObsoleteBroadcom Limited
IC AMP GPS 900MHZ-2.4GHZ 6MCOB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALM-GA002-BLKG |
|---|---|
| Current - Supply | 13 mA |
| Frequency [Max] | 2.4 GHz |
| Frequency [Min] | 900 MHz |
| Gain | 15 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 1 dB |
| Package / Case | 6-TDFN Exposed Pad |
| RF Type | WiMax, GPS |

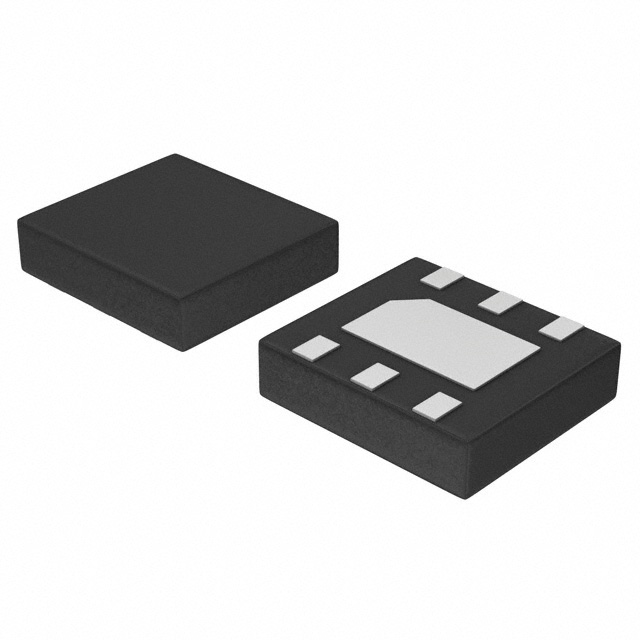

| Supplier Device Package | 6-MCOB (2x2) |
| Test Frequency | 1.575 GHz |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ALM-GA002 Series
RF Amplifier IC GPS, WiMAX 900MHz ~ 2.4GHz 6-MCOB (2x2)
Documents
Technical documentation and resources
No documents available
