000-34450

Active

Amphenol RF

CONN TRIAX RCPT STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

000-34450

Active

Amphenol RF

CONN TRIAX RCPT STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	000-34450

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	Triaxial
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	50 Ohms

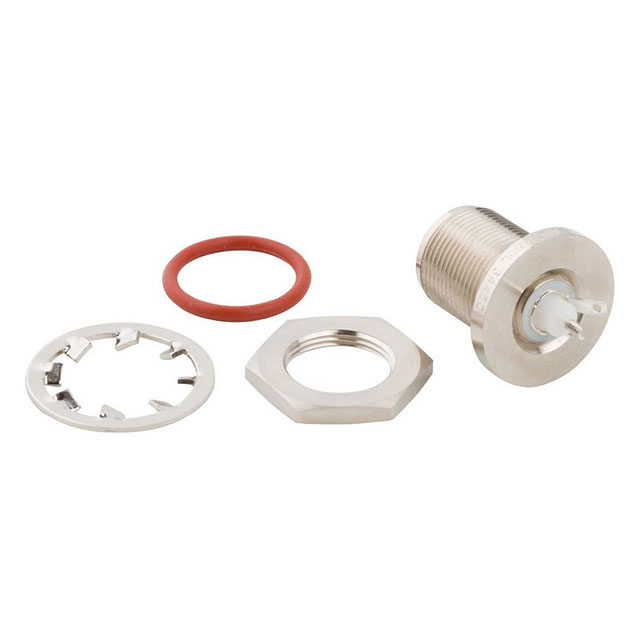

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	5000 V

000-34 Series

Part	Mating Cycles	Connector Type	Dielectric Material	Shield Termination	Body Finish	Impedance	Housing Color	Body Material	Cable Group	Number of Ports	Contact Termination	Center Contact Plating	Center Contact Material	Connector Style	Includes	Frequency - Max [Max]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Ingress Protection	Accessory Type	For Use With/Related Products	Color	Features	Impedance	Convert To (Adapter End)	Conversion Type	Adapter Series	Adapter Type
Amphenol RF 000-34525	500	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Clamp	Nickel	50 Ohms	Silver	Brass	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	1	Solder	Silver	Brass	N Type
Amphenol RF 000-34475	500	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Nickel	50 Ohms	Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial	1 Connector 1 Gasket 1 Lockwasher 1 Nut	300 MHz	5000 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	Weatherproof
Amphenol RF 000-34275					Nickel			Brass						Triaxial								Cap (Cover) Dust	Triaxial Connectors	Silver	Chain
Amphenol RF 000-34400-1003	500	Female Socket Jack	Copolymer	Clamp	Nickel		Silver	Brass		1	Solder	Silver	Beryllium Copper	Triaxial												Non-Constant
Amphenol RF 000-34125						50 Ohms																					Male Pin N Plug	Between Series	N to UHF	Plug to Jack
Amphenol RF 000-34475-1003	500	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Silver		Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial						Bulkhead - Front Side Nut						Non-Constant
Amphenol RF 000-34450	500	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Solder	Nickel	50 Ohms	Silver	Brass		1	Solder Cup	Silver	Beryllium Copper	Triaxial	1 Connector 1 Gasket 1 Lockwasher 1 Nut	300 MHz	5000 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	Weatherproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.41
		10	$ 55.49
		25	$ 50.46
		50	$ 47.94

Description

General part information

000-34 Series

Triaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
