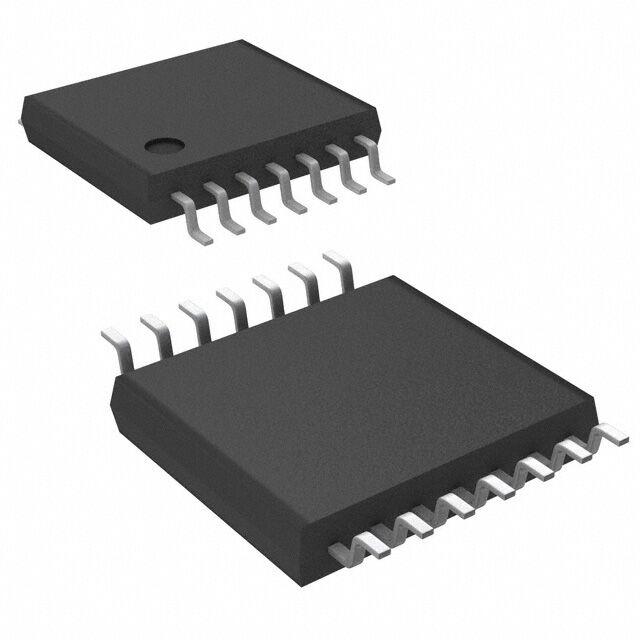

SP6128AEY-L
ObsoleteMaxLinear, Inc.
IC REG CTRLR BUCK 14TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
SP6128AEY-L
ObsoleteMaxLinear, Inc.
IC REG CTRLR BUCK 14TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SP6128AEY-L |
|---|---|
| Clock Sync | False |
| Duty Cycle (Max) [Max] | 90 % |
| Frequency - Switching | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 14-TSSOP |
| Package / Case [custom] | 0.173 " |
| Package / Case [custom] | 4.4 mm |
| Supplier Device Package | 14-TSSOP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SP6128 Series
Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-TSSOP
Documents
Technical documentation and resources
No documents available
