RB66P06B28B

Active

Serpac

BOX PLASTIC BLACK 6.3"L X 6.3"W

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLACK 6.3"L X 6.3"W

Technical Specifications

Parameters and characteristics for this part

Specification	RB66P06B28B

Color	Black
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Size / Dimension [x]	160.02 mm
Size / Dimension [x]	6.3 "
Size / Dimension [y]	6.3 "
Size / Dimension [y]	160.02 mm
Thickness	0.12 in
Thickness	3.05 mm

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Height [z]	Height [z]	Material	Material Flammability Rating	Design	Container Type	Thickness	Thickness	Ratings
Serpac RB66P06B28B	160.02 mm	6.3 "	6.3 "	160.02 mm	Black	3.35 in	85.09 mm	Plastic Polycarbonate	UL94 V-0	Cover Included	Box	0.12 in	3.05 mm	IP67 NEMA 4
Serpac RB66P06B16B	160.02 mm	6.3 "	6.3 "	160.02 mm	Black	2.7 in	68.58 mm	Plastic Polycarbonate	UL94 V-0	Cover Included	Box	0.12 in	3.05 mm	IP67 NEMA 4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

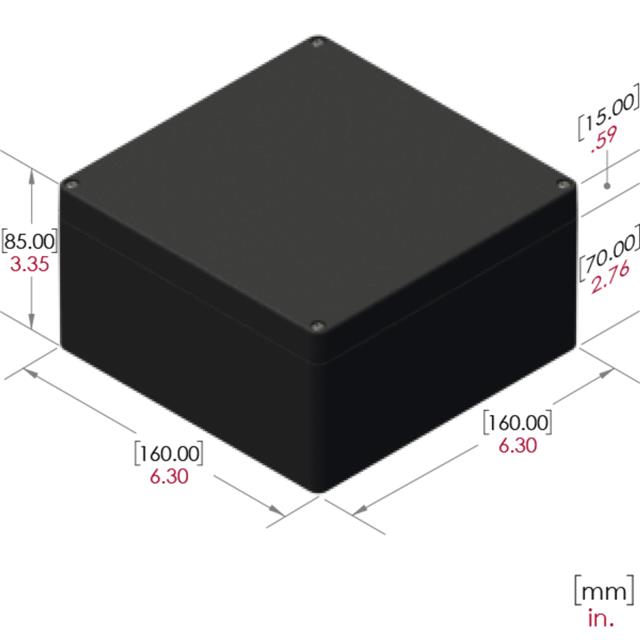

Box Plastic, Polycarbonate Black Cover Included 6.300" L x 6.300" W (160.02mm x 160.02mm) X 3.350" (85.09mm)
