7003-1572-003

Active

Radiall USA, Inc.

SSMC / STRAIGHT JACK MALE CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC / STRAIGHT JACK MALE CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7003-1572-003

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Voltage Rating	Center Contact Material	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Dielectric Material	Center Contact Plating	Cable Group	Cable Group	Connector Type	Mating Cycles	Housing Color	Number of Ports	Connector Style	Mounting Feature	Body Finish	Body Material	Fastening Type	Impedance	Frequency - Max [Max]	Contact Termination
Radiall USA, Inc. 7003-1572-002	250 VDC	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	Gold	196	RG-178	Jack Male Pin	500	Gold	1	SSMC	Bulkhead - Front Side Nut	Gold	Beryllium Copper	Snap-On	50 Ohms	12.4 GHz	Crimp
Radiall USA, Inc. 7003-1572-003	250 VDC	Beryllium Copper		-65 ░C	165 °C	Crimp	Polytetrafluoroethylene (PTFE)	Gold		RG-316	Jack Male Pin	500	Gold	1	SSMC	Bulkhead - Front Side Nut	Gold	Beryllium Copper		50 Ohms	12.4 GHz	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

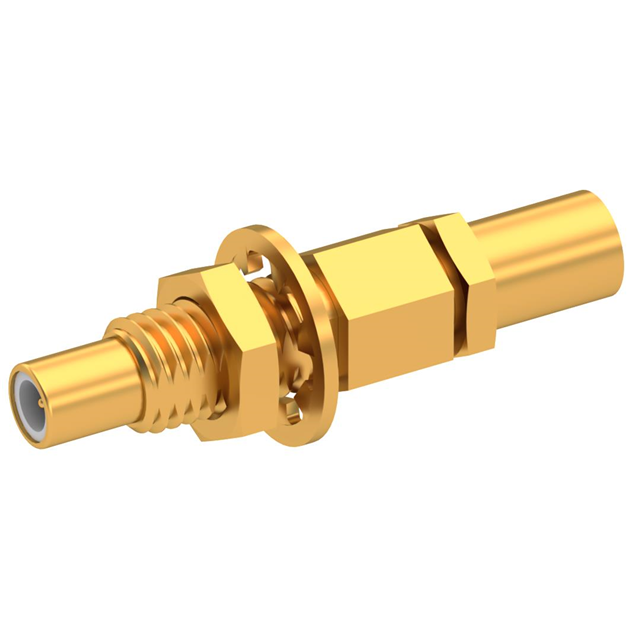

SSMC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
