19620005080

Active

HARTING Technology Group

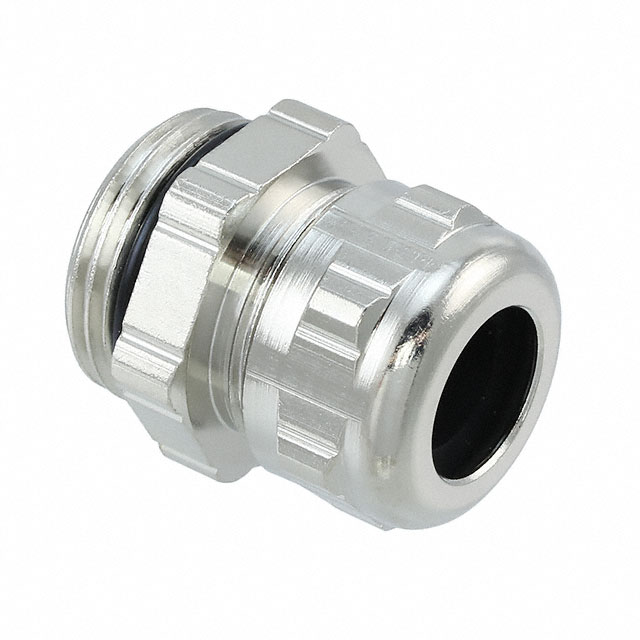

CABLE GLAND 6.5-9.5MM M20

Search across all available documentation for this part.

Active

HARTING Technology Group

CABLE GLAND 6.5-9.5MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	19620005080

Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.374 in
Outside Cable Diameter (Max) [Max] [diameter]	9.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.256 in
Thread Size	M20
Type	Cable Gland

Part	For Use With/Related Products	Specifications	Accessory Type	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]
HARTING Technology Group 19620005056	Han-Compact® Hoods	M25 Thread	EMC Cable Gland
HARTING Technology Group 19620005057	Han-Compact® Hoods	M25 Thread	EMC Cable Gland
HARTING Technology Group 19620005058	Han-Compact® Hoods	M25 Thread	EMC Cable Gland
HARTING Technology Group 19620005097				Cable Gland	0.807 in	20.5 mm	IP68 - Dust Tight Waterproof	-40 °C	130 °C
HARTING Technology Group 19620005092				Cable Gland			IP68 - Dust Tight Waterproof	-40 °C	130 °C	9 mm	0.354 in	M25	0.512 in	13 mm
HARTING Technology Group 19620005081				Cable Gland			IP68 - Dust Tight Waterproof	-40 °C	130 °C			M20	0.256 "	6.5 mm	0.157 in	4 mm
HARTING Technology Group 19620005080				Cable Gland			IP68 - Dust Tight Waterproof	-40 °C	130 °C	6.5 mm	0.256 in	M20		0.374 in			9.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland M20
