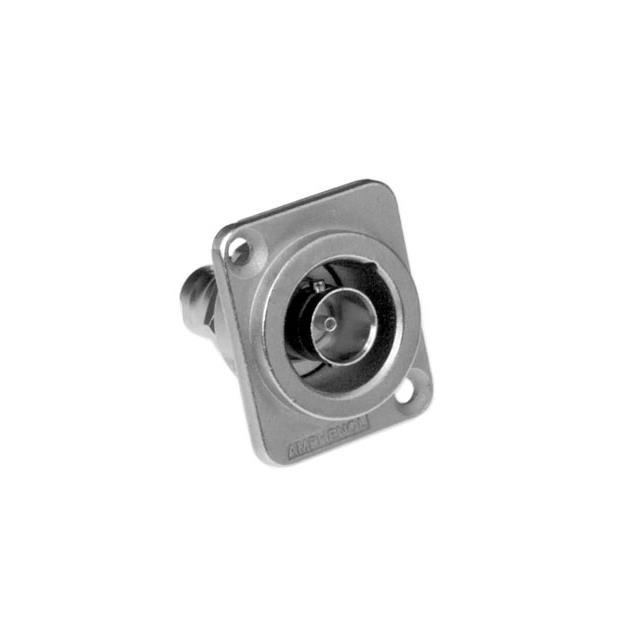

AC-BNC-JJ-75B

Active

AMPHENOL AUDIO

COAX ADAPT BNC TO BNC

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

COAX ADAPT BNC TO BNC

Technical Specifications

Parameters and characteristics for this part

Specification	AC-BNC-JJ-75B

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	3 GHz
Impedance	75 Ohms
Mounting Feature	Flange
Style	Straight

Part	Conversion Type	Center Gender	Convert From (Adapter End)	Features	Mounting Feature	Convert To (Adapter End)	Adapter Series	Frequency - Max [Max]	Dielectric Material	Body Material	Impedance	Center Contact Plating	Style	Adapter Type	Fastening Type
AMPHENOL AUDIO AC-BNC-JJ-75B	Same Series	Female to Female	BNC Jack Female Socket	Isolated	Flange	BNC Jack Female Socket	BNC to BNC	3 GHz	Polytetrafluoroethylene (PTFE)	Brass	75 Ohms	Gold	Straight	Jack to Jack	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 12.93

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
