304-28-15-MC-0250F

Obsolete

CnC Tech, LLC

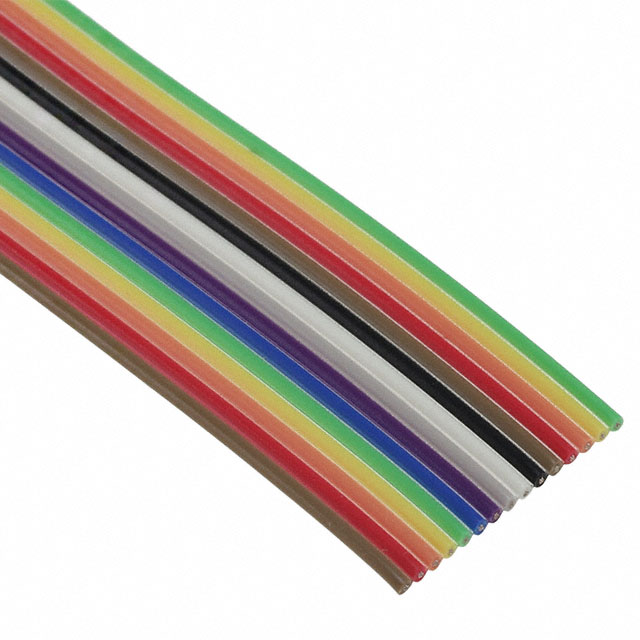

CBL RIBN 15COND 0.05 MULT 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet

304-28-15-MC-0250F

Obsolete

CnC Tech, LLC

CBL RIBN 15COND 0.05 MULT 250'

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	304-28-15-MC-0250F

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	76.2 m
Length	3000 "
Number of Conductors	15
Operating Temperature	105 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	0.75 "
Ribbon Width	19.05 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

304-28 Series

Part	Jacket Color	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width	Ribbon Width	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Conductor Material	Insulation Resistance	Ratings	Voltage	Jacket (Insulation) Material	Operating Temperature	Length	Length	Cable Type	Wire Gauge	Shielding	Length [x]	Length [x]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width
CnC Tech, LLC 304-28-15-MC-0250F	Multiple	15	7	36 AWG	0.75 "	19.05 mm	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	76.2 m	3000 "	Flat Cable	28 AWG	Unshielded
CnC Tech, LLC 304-28-15-MC-0100F	Multiple	15	7	36 AWG	0.75 "	19.05 mm	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C			Flat Cable	28 AWG	Unshielded	100 ft	30.48 m
CnC Tech, LLC 304-28-09-MC-0100F	Multiple	9	7	36 AWG	0.45 in	11.43 mm	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C			Flat Cable	28 AWG	Unshielded	100 ft	30.48 m
CnC Tech, LLC 304-28-16-MC-0250F	Multiple	16	7	36 AWG			0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	15.24 m 76.2 m	50 ft 3000 "	Flat Cable	28 AWG	Unshielded	10 ft	3.05 m	20.32 mm	0.8 in
CnC Tech, LLC 304-28-40-MC-0100F	Multiple	40	7	36 AWG			0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C			Flat Cable	28 AWG	Unshielded	100 ft	30.48 m	50.8 mm	2 in
CnC Tech, LLC 304-28-10-MC-0300F	Multiple	10	7	36 AWG			0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	91.44 m	300 ft	Flat Cable	28 AWG	Unshielded					0.5 "	12.7 mm
CnC Tech, LLC 304-28-37-MC-0250F	Multiple	37	7	36 AWG	1.85 in	46.99 mm	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	76.2 m	3000 "	Flat Cable	28 AWG	Unshielded
CnC Tech, LLC 304-28-20-MC-0300F	Multiple	20	7	36 AWG		1 in	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	91.44 m	300 ft	Flat Cable	28 AWG	Unshielded							25.4 mm
CnC Tech, LLC 304-28-44-MC-0300F	Multiple	44	7	36 AWG			0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	91.44 m	300 ft	Flat Cable	28 AWG	Unshielded
CnC Tech, LLC 304-28-26-MC-0300F	Multiple	26	7	36 AWG	1.3 "	33.02 mm	0.05 in	1.27 mm	0.89 mm	0.035 in	Copper Tinned	100 MOhms	UL Style 2651	300 V	Poly-Vinyl Chloride (PVC)	105 C	91.44 m	300 ft	Flat Cable	28 AWG	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 130.24

Description

General part information

304-28 Series

Flat Ribbon Cable Multiple 15 Conductors 0.050" (1.27mm) Flat Cable 250.0' (76.20m)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet
