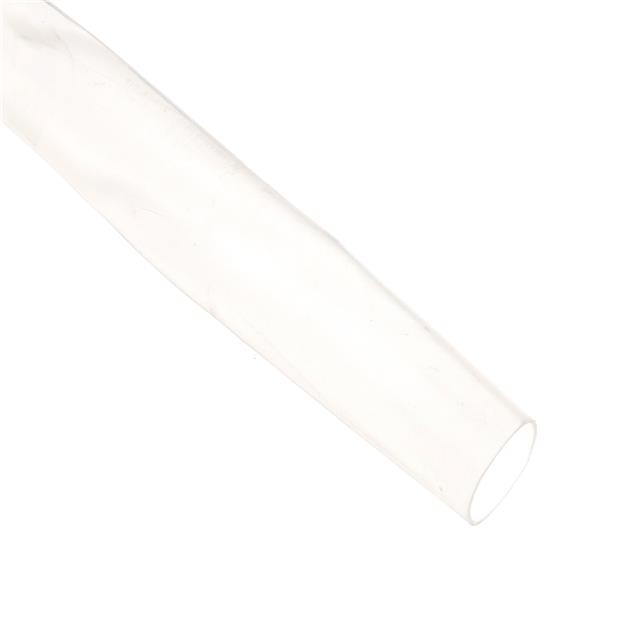

A2 3/16 CLEAR SPL

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/16" CLEAR FOOT

Search across all available documentation for this part.

Active

Sumitomo Electric Interconnect Products, Inc.

HEATSHRINK 3/16" CLEAR FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	A2 3/16 CLEAR SPL

Color	Clear
Inner Diameter - Recovered	2.4 mm
Inner Diameter - Recovered	0.094 in
Inner Diameter - Supplied [diameter]	5.21 mm
Inner Diameter - Supplied [diameter]	0.205 in
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shrink Temperature	110 °C
Shrinkage Ratio	2 to 1
Spool Size	61 m
Spool Size	200 '
Type	Tubing, Flexible

Part	Spool Size	Spool Size	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Color	Shrinkage Ratio	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
Sumitomo Electric Interconnect Products, Inc. A2 3/16 CLEAR SPL	61 m	200 '	2.4 mm	0.094 in	Enter Number of Feet in Order Quantity	Tubing Flexible	0.02 in	0.51 mm	110 °C	Clear	2 to 1	Polyolefin (PO) Irradiated Halogen Free	5.21 mm	0.205 in	135 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.205" (5.21mm) 2 to 1 Clear Enter Number of Feet in Order Quantity
