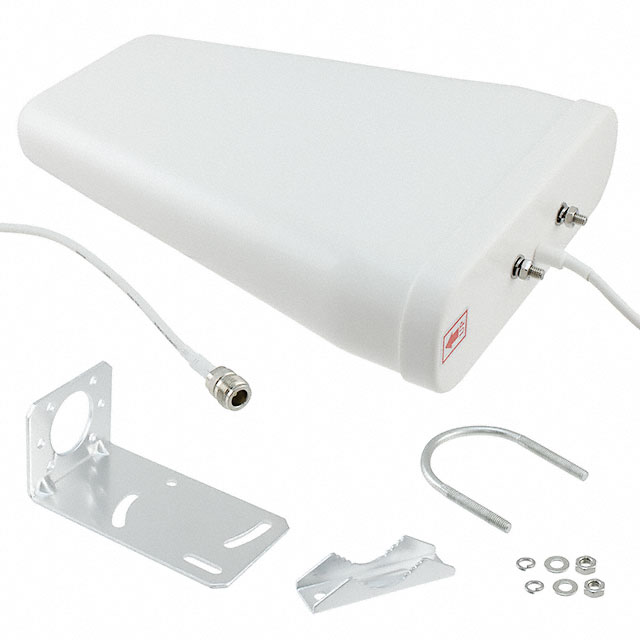

OSCAR18/X/NF/S/S/22

Active

Siretta Ltd

RF ANT 850MHZ/900MHZ YAGI N FEM

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 850MHZ/900MHZ YAGI N FEM

Technical Specifications

Parameters and characteristics for this part

Specification	OSCAR18/X/NF/S/S/22

Antenna Type	Yagi
Applications	Zigbee™, Bluetooth, GPRS, WLAN, GSM, UMTS
Frequency (Center/Band)	1.9 GHz, 2.1 GHz, 1.8 GHz, 2.4 GHz, 900 MHz, 850 MHz
Frequency Group	Wide Band
Gain	10 dBi
Height (Max) [Max]	2.559 in
Height (Max) [Max]	65 mm
Mounting Type	Bracket Mount
Number of Bands	6
RF Family/Standard	Cellular, Bluetooth, 802.15.4, WiFi
Termination	N Type Female
VSWR	1.5

Part	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Applications	Antenna Type	Frequency Group	VSWR	Frequency (Center/Band)	Number of Bands	Gain	Mounting Type	Termination
Siretta Ltd OSCAR18/X/NF/S/S/22	802.15.4 Bluetooth Cellular WiFi	2.559 in	65 mm	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Yagi	Wide Band	1.5	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 850 MHz 900 MHz	6	10 dBi	Bracket Mount	N Type Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ Yagi N Type Female Bracket Mount
