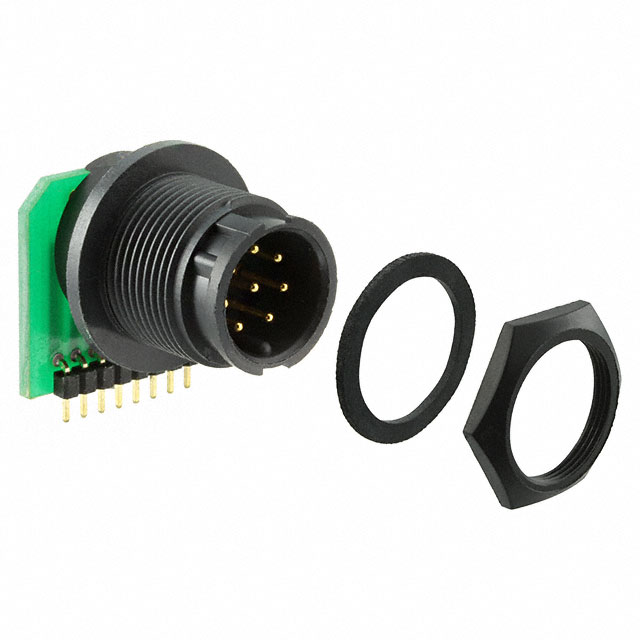

7261-8PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7261-8PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Circuit Board, Solder

Part	Mounting Feature	Insert Material	Fastening Type	Contact Material	Connector Type	Ingress Protection	Current Rating (Amps)	Orientation	Termination	Contact Finish - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Material Flammability Rating	Color	Backshell Material, Plating	Primary Material	Shielding
Conxall/Switchcraft 7261-8PG-300	Bulkhead - Front Side Nut	Thermoplastic	Bayonet Lock	Copper Alloy	Male Pins Receptacle	Weathertight	Varies by Wire Gauge	Keyed	Circuit Board Solder	Gold	8	85 °C	-40 °C	Automotive Communication Systems Instrumentation	Panel Mount Right Angle Through Hole	UL94 V-0	Black	Nylon Polyamide (PA)	Plastic	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
