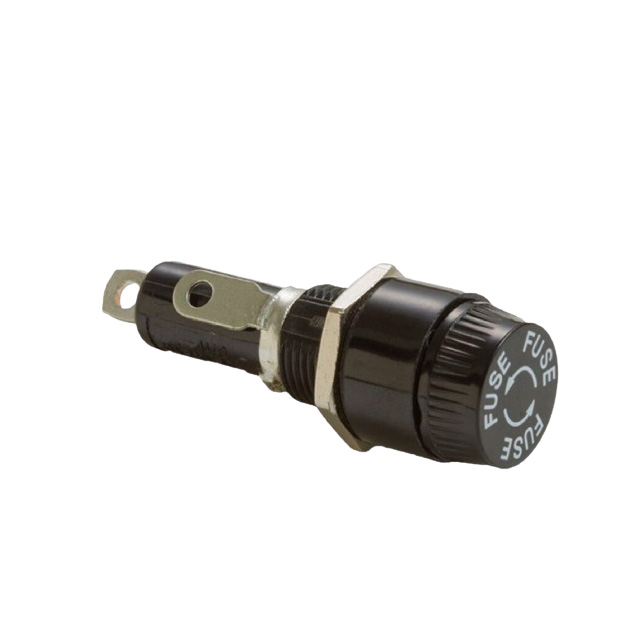

PMA-KB-01H-SOS

Active

OptiFuse

1-1/4"X1/4" - KNOB/BAYONET,

Search across all available documentation for this part.

Active

OptiFuse

1-1/4"X1/4" - KNOB/BAYONET,

Technical Specifications

Parameters and characteristics for this part

Specification	PMA-KB-01H-SOS

Contact Finish	Tin
Contact Material	Brass
Current Rating (Amps)	30 A
For Use With/Related Products	3AG
Fuse Size [diameter]	0.25 "
Fuse Size [diameter]	6.35 mm
Fuse Size [x]	32 mm
Fuse Size [x]	1.26 in
Fuse Type	Cartridge
Fuseholder Type	Holder
Number of Circuits	1
Orientation	Horizontal and Vertical
Termination Style	Solder Lug
Voltage	250 V

Part	Contact Finish	Contact Material	Termination Style	Termination Style	For Use With/Related Products	Fuseholder Type	Current Rating (Amps)	Fuse Type	Orientation	Fuse Size [x]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Number of Circuits	Voltage
OptiFuse PMA-KB-08-Q1S	Nickel	Copper Alloy	Quick Connect Solder	0.187 in 4.7 mm	3AG	Holder	10 A	Cartridge	Horizontal and Vertical	32 mm	1.26 in	0.25 "	6.35 mm	1	250 V
OptiFuse PMA-KB-01H-SOS	Tin	Brass	Solder Lug		3AG	Holder	30 A	Cartridge	Horizontal and Vertical	32 mm	1.26 in	0.25 "	6.35 mm	1	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.44

General part information

Fuse Holder 30 A 250V 1 Circuit Cartridge Panel Mount
