SMLJ6.5CA-TP

Active

Micro Commercial Components

TVS DIODE 6.5VWM 11.2VC DO214AB

Search across all available documentation for this part.

Active

Micro Commercial Components

TVS DIODE 6.5VWM 11.2VC DO214AB

Technical Specifications

Parameters and characteristics for this part

Specification	SMLJ6.5CA-TP

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	267.9 A
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

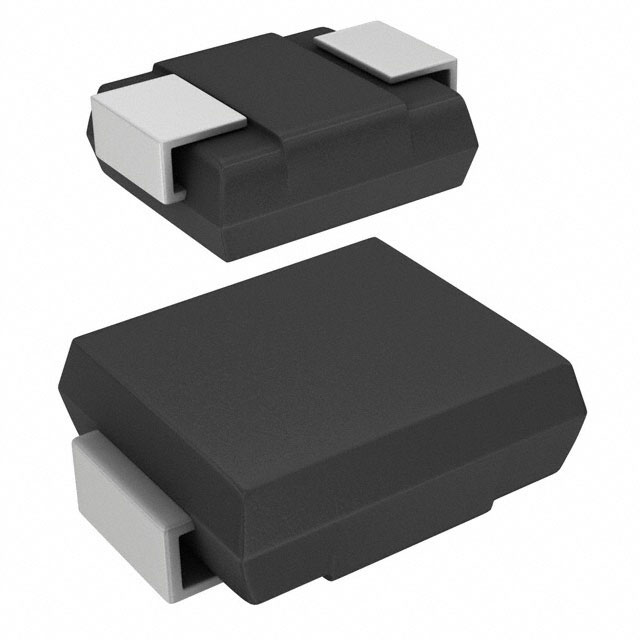

Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Voltage - Breakdown (Min) [Min]	7.22 V
Voltage - Clamping (Max) @ Ipp [Max]	11.2 V
Voltage - Reverse Standoff (Typ)	6.5 V

Part	Type	Unidirectional Channels [custom]	Mounting Type	Power - Peak Pulse	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]
Micro Commercial Components SMLJ6.5A-TP	Zener	1	Surface Mount	3000 W	3 kW	7.22 V	267.9 A	6.5 V	General Purpose	-55 °C	175 ░C	DO-214AB SMC	DO-214AB (SMC)		11.2 V
Micro Commercial Components SMLJ6.5CA-TP	Zener		Surface Mount	3000 W	3 kW	7.22 V	267.9 A	6.5 V	General Purpose	-55 °C	175 ░C	DO-214AB SMC	DO-214AB (SMC)		11.2 V	1
