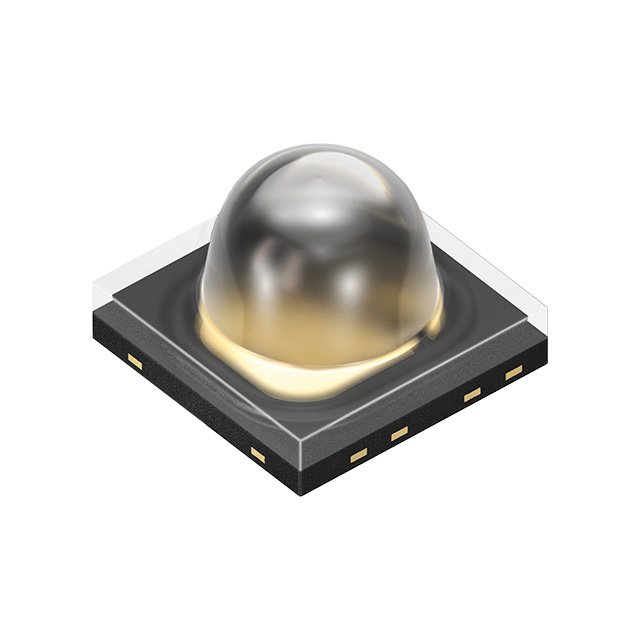

SFH 4717AS A01
ams-OSRAM USA INC.
EMITTER IR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 4717AS A01
ams-OSRAM USA INC.
EMITTER IR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4717AS A01 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3838 Metric |
| Package / Case | 1515 |
| Radiant Intensity (Ie) Min @ If [Min] | 630 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.95 | |
| 10 | $ 2.79 | |||
| 100 | $ 2.29 | |||
| Digi-Reel® | 1 | $ 3.95 | ||
| 10 | $ 2.79 | |||
| 100 | $ 2.29 | |||
| Tape & Reel (TR) | 600 | $ 1.93 | ||
| 1200 | $ 1.77 | |||
| 3000 | $ 1.69 | |||
| 6000 | $ 1.66 | |||
Description
General part information
SFH4717 Series
Infrared (IR) Emitter 860nm 3.5V 1.5A 630mW/sr @ 1A 50° 1515 (3838 Metric)
