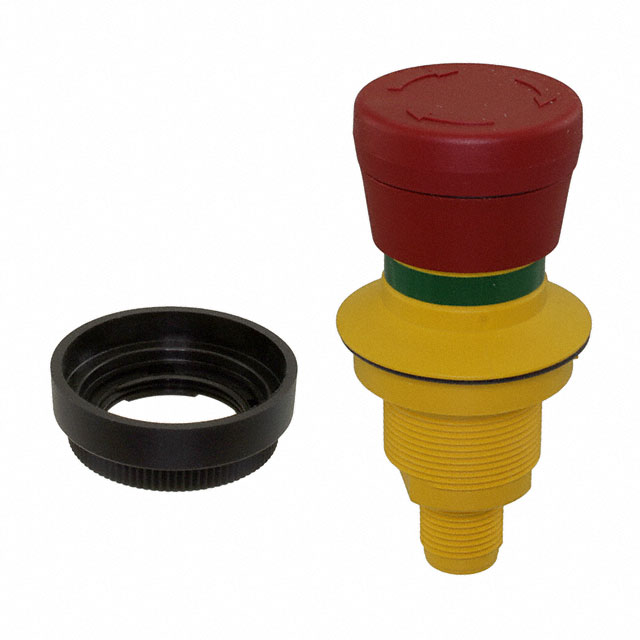

1.10.031.011/0000
ActiveRAFI USA
SW E-STOP TWIST RESET 100MA 35V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.10.031.011/0000
ActiveRAFI USA
SW E-STOP TWIST RESET 100MA 35V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.10.031.011/0000 |
|---|---|
| Circuit | DPST-NC |
| Current Rating (Amps) | 100 mA |
| Features | Status Indicator |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | Connector |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 130.85 | |
| 6 | $ 112.48 | |||
| 10 | $ 107.71 | |||
| 26 | $ 99.32 | |||
| 50 | $ 93.94 | |||
| 100 | $ 88.54 | |||
Description
General part information
1.10031 Series
SW E-STOP TWIST RESET 100MA 35V
