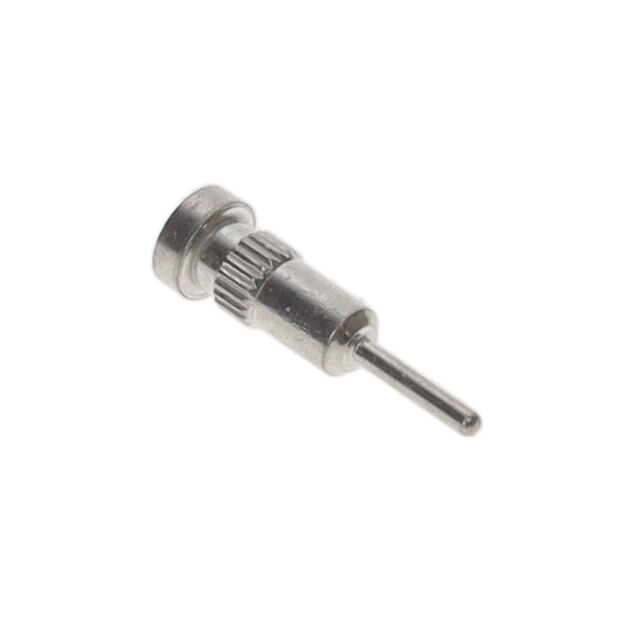

0297-0-15-01-06-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.032 KNURL

Deep-Dive with AI

Search across all available documentation for this part.

0297-0-15-01-06-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .022-.032 KNURL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0297-0-15-01-06-27-04-0

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.16 mm
Flange Diameter [diameter]	0.085 in
Length - Overall	0.31 in
Length - Overall	7.87 mm
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.16 in
Socket Depth	4.06 mm
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Knurled, Press-Fit

0297-0 Series

Part	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Socket Depth	Socket Depth	Length - Overall	Length - Overall	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 0297-0-15-80-06-14-04-0	0.051 in	1.3 mm	Gold	10 Áin	0.25 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit
Mill-Max Manufacturing Corp. 0297-0-15-80-06-80-04-0	0.051 in	1.3 mm	Tin	200 Áin	5.08 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit
Mill-Max Manufacturing Corp. 0297-0-15-01-06-14-04-0	0.051 in	1.3 mm	Gold	10 Áin	0.25 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit
Mill-Max Manufacturing Corp. 0297-0-15-15-06-14-04-0	0.051 in	1.3 mm	Gold	10 Áin	0.25 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit
Mill-Max Manufacturing Corp. 0297-0-15-01-06-01-04-0	0.051 in	1.3 mm	Tin-Lead	200 Áin	5.08 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit
Mill-Max Manufacturing Corp. 0297-0-15-01-06-27-04-0	0.051 in	1.3 mm	Gold	30 Áin	0.76 Ám	-55 °C	125 °C	0.02 in	0.51 mm	Beryllium Copper	0.16 in	4.06 mm	0.31 in	7.87 mm	Standard Tail	1.7 mm	0.067 "	2.16 mm	0.085 in	Knurled Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38
		10	$ 1.20
		25	$ 1.15
		50	$ 1.12
		100	$ 1.07
		250	$ 0.97
		500	$ 0.89
		1000	$ 0.77
		3000	$ 0.72

Description

General part information

0297-0 Series

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) Standard Tail Press-Fit, Knurled

Documents

Technical documentation and resources

No documents available
