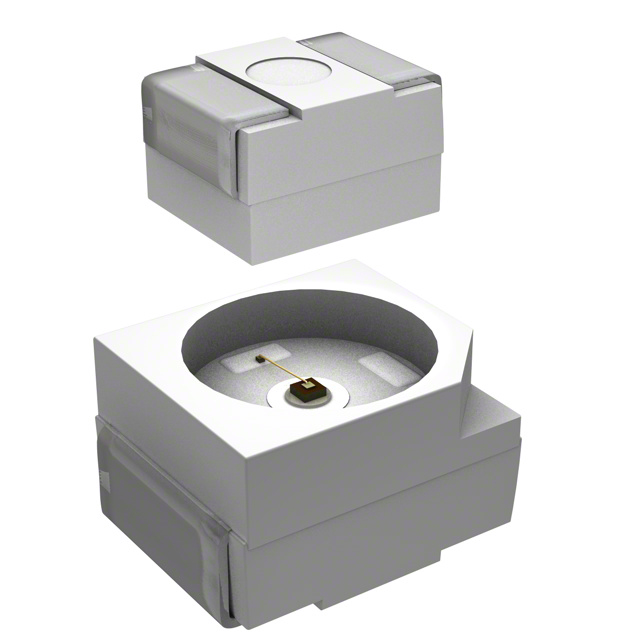

QTLP670C2TR

Obsolete

Everlight Electronics Co Ltd

LED RED CLEAR 2PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QTLP670C2TR

Obsolete

Everlight Electronics Co Ltd

LED RED CLEAR 2PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTLP670C2TR

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	2.1 mm
Lens Color	Colorless
Lens Size [diameter]	2.4 mm
Lens Transparency	Clear
Millicandela Rating	10 mcd
Mounting Type	Surface Mount
Package / Case	2-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	2-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	630 nm
Wavelength - Peak	635 nm

QTLP670 Series

Part	Lens Transparency	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Lens Color	Wavelength - Peak	Package / Case	Supplier Device Package	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Current - Test	Viewing Angle	Color	Wavelength - Dominant	Configuration	Mounting Type	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Size [x]	Lens Size [y]	Current - Test	Lens Style
Everlight Electronics Co Ltd QTLP670C9TR	Clear	2.4 mm	1.9 V	Colorless	660 nm	2-PLCC	2-PLCC	40 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Red	645 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670C74TR	Clear	2.4 mm		Colorless	565 nm 660 nm	4-PLCC	4-PLCC		2.8 mm	3.2 mm	2.1 mm	20 mA 20 mA	120 °	Green Red		Independent	Surface Mount	645 nm	570 nm	25 mcd	20 mcd	2.1 V	1.9 V
Everlight Electronics Co Ltd QTLP670CB_7697D	Clear	2.4 mm	3.8 V	Colorless	430 nm	2-PLCC	2-PLCC	30 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Blue	465 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670CRYTR	Clear		2 V 2 V	Colorless	590 nm 630 nm	4-PLCC	4-PLCC	35 mcd 35 mcd	2.8 mm	3.2 mm	2.1 mm		140 °	Red Yellow	589 nm 624 nm	Independent	Surface Mount							2 mm	2.7 mm	20mA Red 20mA Yellow	Rectangle with Flat Top
Everlight Electronics Co Ltd QTLP670C34TR	Clear	2.4 mm	2 V 2.1 V	Colorless	565 nm 585 nm	4-PLCC	4-PLCC	5 mcd 25 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA 20 mA	120 °	Green Yellow	570 nm 590 nm	Independent	Surface Mount
Everlight Electronics Co Ltd QTLP670CYTR	Clear	2.4 mm	2 V	Colorless	590 nm	2-PLCC	2-PLCC	65 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Yellow	589 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670CBTR	Clear	2.4 mm	3.8 V	Colorless	430 nm	2-PLCC	2-PLCC	30 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Blue	465 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670C2TR	Clear	2.4 mm	2 V	Colorless	635 nm	2-PLCC	2-PLCC	10 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Red	630 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670CIGTR	Clear	2.4 mm	3.5 V	Colorless	520 nm	2-PLCC	2-PLCC	115 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	Green	525 nm	Standard	Surface Mount
Everlight Electronics Co Ltd QTLP670CIWTR	Clear	2.4 mm	3.5 V	Colorless		2-PLCC	2-PLCC	250 mcd	2.8 mm	3.2 mm	2.1 mm	20 mA	120 °	White		Standard	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QTLP670 Series

Red 630nm LED Indication - Discrete 2V 2-PLCC

Documents

Technical documentation and resources
