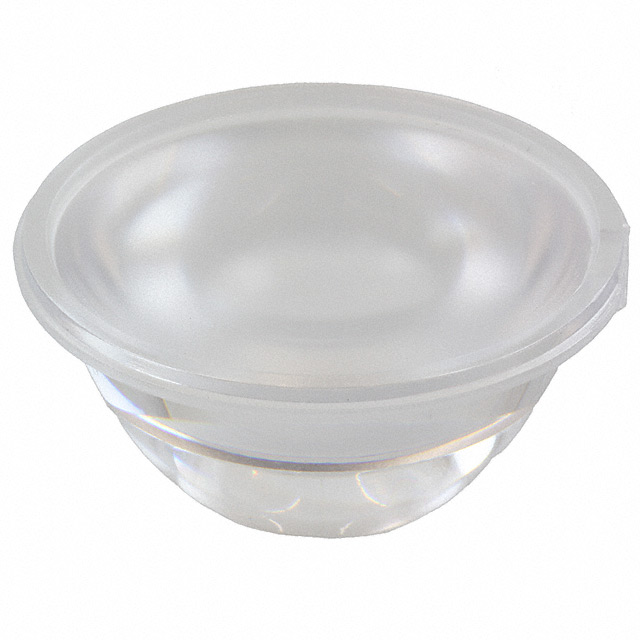

C12502_MIRA-WW

Active

LEDiL

ROUND LENS FOR LUXEON 5258, NSMX286M, CXA15XX, SOLERIQ P9, NSCXL036A LED

Search across all available documentation for this part.

Active

LEDiL

ROUND LENS FOR LUXEON 5258, NSMX286M, CXA15XX, SOLERIQ P9, NSCXL036A LED

Technical Specifications

Parameters and characteristics for this part

Specification	C12502_MIRA-WW

Color	Clear
For Use With/Related Manufacturer	Osram, Lumileds, Bridgelux, Cree, Nichia
Lens Size [diameter]	32.4 mm
Lens Transparency	Clear
Material	Polycarbonate
Number of LEDs	1
Optical Pattern	Wide
Type	Holder Required, Lens Only
Viewing Angle [Max]	61 °
Viewing Angle [Min]	47 °

Part	Color	Lens Size [diameter]	Optical Pattern	Type	Lens Transparency	Number of LEDs	For Use With/Related Manufacturer	Material	Viewing Angle [Min]	Viewing Angle [Max]
LEDiL C12502_MIRA-WW	Clear	32.4 mm	Wide	Holder Required Lens Only	Clear	1	Bridgelux Cree Lumileds Nichia Osram	Polycarbonate	47 °	61 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Only, Holder Required Clear 47° ~ 61° Wide
