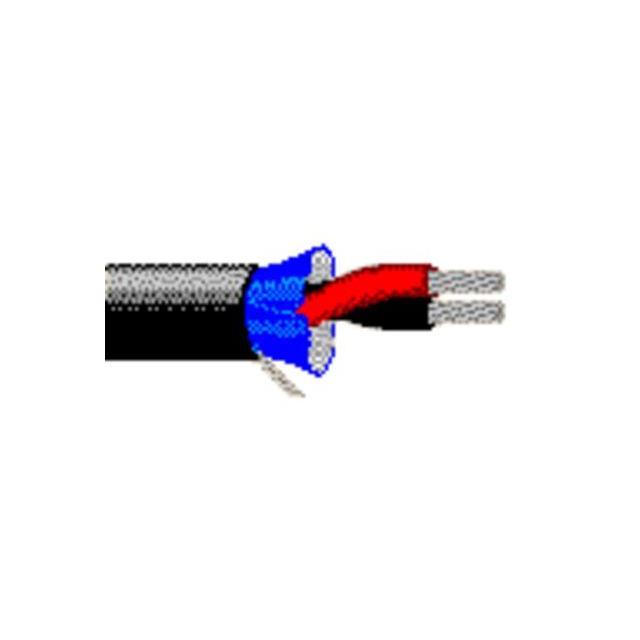

1508A B59500

Active

Belden Inc.

1 PR #24 PO FS PVC

Search across all available documentation for this part.

Active

Belden Inc.

1 PR #24 PO FS PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1508A B59500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.131 in
Jacket (Insulation) Diameter [diameter]	3.33 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.024 in
Jacket (Insulation) Thickness	0.61 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum, Poly-Vinyl Chloride (PVC)
Shield Type	Foil
Usage	Audio, Control
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Features	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Wire Gauge	Number of Conductors	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Material	Length [x]	Length [x]	Shield Material	Conductor Insulation	Shield Type	Shield Coverage
Belden Inc. 1508A B59500	0.131 in	3.33 mm	32 AWG	7	Multi-Conductor	Drain Wire	Black	-20 C	60 °C	Audio Control	24 AWG	2	300 V	0.024 in	0.61 mm	Copper Tinned	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Aluminum Poly-Vinyl Chloride (PVC) Polyester	Polypropylene (PP)	Foil	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.78

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 24 AWG Foil 500.0' (152.4m)
