TC-300-NMH-X

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (S

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (S

Technical Specifications

Parameters and characteristics for this part

Specification	TC-300-NMH-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-300
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Dielectric Material	Mounting Type	Center Contact Plating	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Body Material	Contact Termination	Connector Style	Body Finish	Shield Termination	Impedance	Mating Cycles	Cable Group	Center Contact Material	Voltage Rating	Housing Color	Mounting Feature
Amphenol Times Microwave Systems TC-300-NF-X	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	6000 MHz	Female Socket Jack	155 °C	-55 °C	1	Brass	Solder	N Type	White Bronze	Crimp	50 Ohms	500	LMR-300	Phosphor Bronze	500 V	Silver
Amphenol Times Microwave Systems TC-300-TM	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	2.5 GHz	Male Pin Plug	85 °C	-40 °C	1	Brass	Solder	TNC	Nickel	Crimp	50 Ohms		LMR-300	Brass	500 V	Silver
Amphenol Times Microwave Systems TC-300-SM	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	2.5 GHz	Male Pin Plug	85 °C	-40 °C	1	Stainless Steel	Solder	SMA		Crimp	50 Ohms		LMR-300	Beryllium Copper	500 V	Silver
Amphenol Times Microwave Systems TC-300-SF-BH	Polytetrafluoroethylene (PTFE)		Gold	2.5 GHz	Female Socket Plug	85 °C	-40 °C	1	Stainless Steel	Solder	SMA		Crimp	50 Ohms		LMR-300	Beryllium Copper	500 V	Silver	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems TC-300-NMH-X	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	6000 MHz	Male Pin Plug	165 °C	-65 ░C	1	Brass	Solder	N Type	White Bronze	Crimp	50 Ohms	500	LMR-300	Brass	500 V	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	18	$ 18.39

General part information

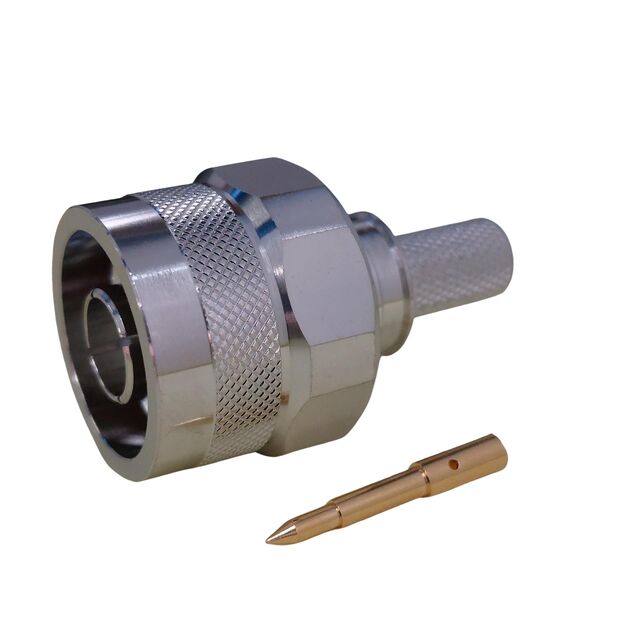

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
