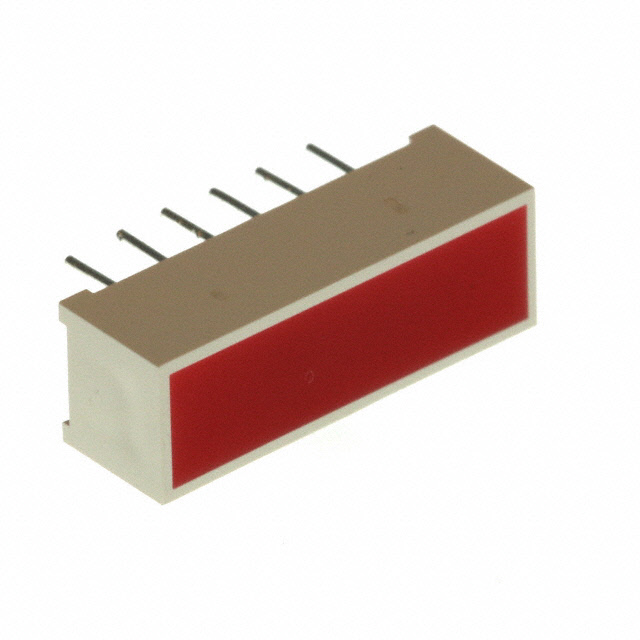

DF3ID
ActiveKingbright
LED LGT BAR 19.9X6.8MM RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF3ID
ActiveKingbright
LED LGT BAR 19.9X6.8MM RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF3ID |
|---|---|
| Color | Red |
| Configuration | DIP, Bar - Single |
| Current | 30 mA |
| Lens Size [x] | 19.9 mm |
| Lens Size [y] | 6.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 27 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 2 V |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.66 | |
| 25 | $ 1.77 | |||
| 100 | $ 1.36 | |||
| 500 | $ 1.23 | |||
| 1000 | $ 1.06 | |||
| 2000 | $ 1.00 | |||
| 5000 | $ 0.98 | |||
| 10000 | $ 0.96 | |||
Description
General part information
DF3 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, DIP Red Diffused, Tinted 2V 30mA Rectangle with Flat Top 19.90mm x 6.80mm Through Hole
