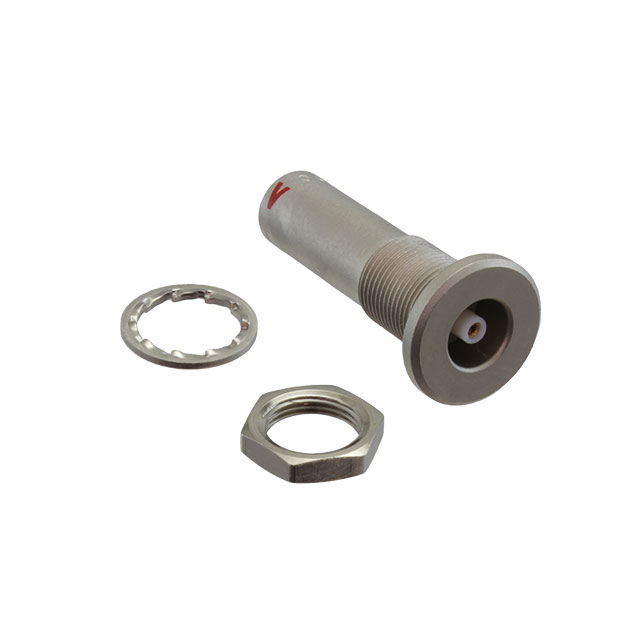

SWH.00.250.NTMV

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics for this part

Specification	SWH.00.250.NTMV

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Style	Straight

Part	Adapter Series	Impedance	Ingress Protection	Adapter Type	Style	Body Material	Fastening Type	Center Gender	Mounting Feature	Body Finish	Includes	Mating Cycles	Dielectric Material	Convert From (Adapter End)	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]
LEMO SWH.00.250.NTMV	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	50 Ohms	IP50	Jack to Jack	Straight	Brass	Push-Pull	Female to Female	Bulkhead	Nickel	1 Connector 1 Lockwasher 1 Nut	500	Polytetrafluoroethylene (PTFE)	NIM-CAMAC CD/N 549 Jack Female Socket	Same Series	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
