903-368P-51A1

Active

Amphenol RF

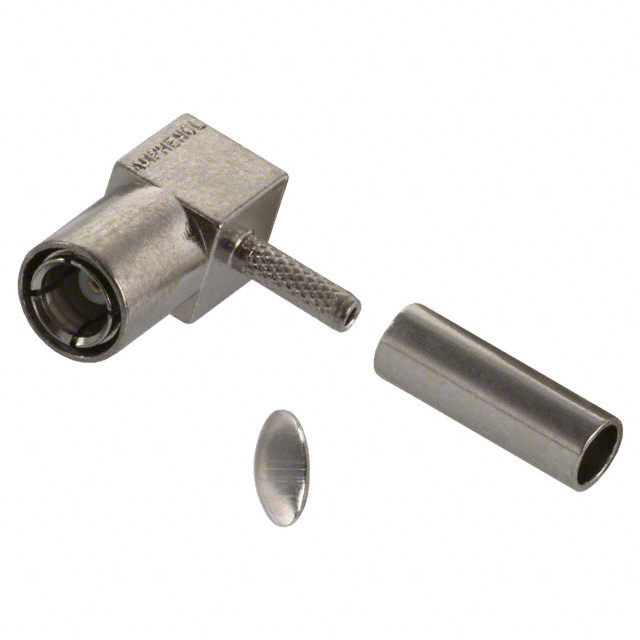

CONN SMB PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-368P-51A1

Body Finish	Nickel
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Mounting Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Body Material	Cable Group	Cable Group	Shield Termination	Body Finish	Contact Termination	Connector Type	Insertion Loss	Impedance	Mating Cycles	Center Contact Material	Fastening Type	Frequency - Max [Max]	Number of Ports	Dielectric Material	Housing Color	Includes
Amphenol RF 903-368P-51A	Free Hanging (In-Line) Right Angle	SMB	-65 ░C	165 °C	Gold	Brass	196	RG-178	Crimp	Nickel	Solder	Female Socket Plug	0.6 dB	50 Ohms	500	Beryllium Copper	Snap-On	10 GHz	1	Polytetrafluoroethylene (PTFE)	Silver
Amphenol RF 903-368P-51A1	Free Hanging (In-Line) Right Angle	SMB	-65 ░C	165 °C	Gold		196	RG-178	Crimp	Nickel	Solder	Female Socket Plug	0.6 dB	50 Ohms	500	Beryllium Copper	Snap-On	4 GHz	1	Polytetrafluoroethylene (PTFE)	Silver	1 Connector 1 End Cap 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
