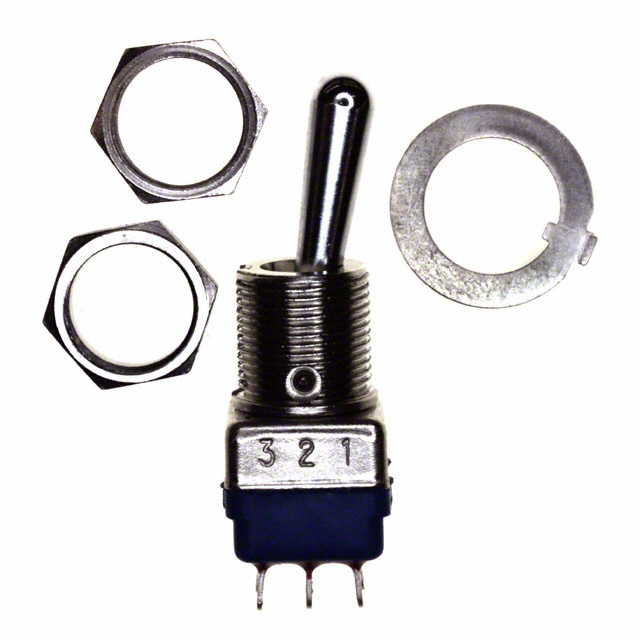

12148A

Active

APEM

SWITCH TOGGLE DPDT 4A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12148A

Actuator Length [x]	17.3 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	4 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Termination Style	Circuit	Actuator Material	Current Rating (Amps)	Actuator Length [x]
APEM 12148A	Epoxy Sealed Terminals	50000 Cycles	85 °C	-40 °C	On-Off-Mom	30 V	125 V	Standard Round	12.5 mm	Non-Illuminated	15/32-32	Solder Lug	DPDT	Brass Nickel Plated	4 A	17.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
