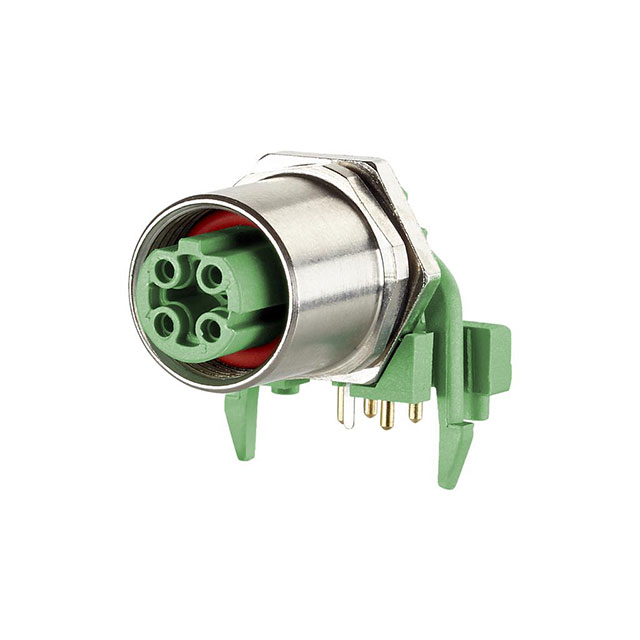

MMT471A115-0002

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CONN JACK FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MMT471A115-0002

Applications	Railway
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Orientation	D
Primary Material	Metal
Shell Material	Copper Zinc
Shell Size - Insert	M12-4
Termination	Solder
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Shell Size - Insert	Number of Positions	Mounting Type	Mounting Feature	Ingress Protection	Voltage Rating	Connector Type	Applications	Shell Material	Color	Termination	Contact Material	Contact Finish - Mating
METZ CONNECT USA Inc. MMT471A115-0001	-30 ░C	90 °C	D	Metal	M12-4	4	Panel Mount Right Angle Through Hole	Bulkhead	IP67 - Dust Tight Waterproof	250 VDC	Female Sockets Jack	Railway	Copper Zinc	Silver	Solder	Copper Zinc	Gold
METZ CONNECT USA Inc. MMT471A115	-30 ░C	90 °C	D	Metal	M12-4	4	Panel Mount Right Angle Through Hole	Bulkhead	IP67 - Dust Tight Waterproof	250 VDC	Female Sockets Jack	Railway	Copper Zinc	Silver	Solder	Copper Zinc	Gold
METZ CONNECT USA Inc. MMT471A115-0002	-30 ░C	90 °C	D	Metal	M12-4	4	Panel Mount Right Angle Through Hole	Bulkhead	IP67 - Dust Tight Waterproof	250 VDC	Female Sockets Jack	Railway	Copper Zinc	Silver	Solder	Copper Zinc	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 21.60

General part information

4 Position Circular Connector Jack, Female Sockets Solder
