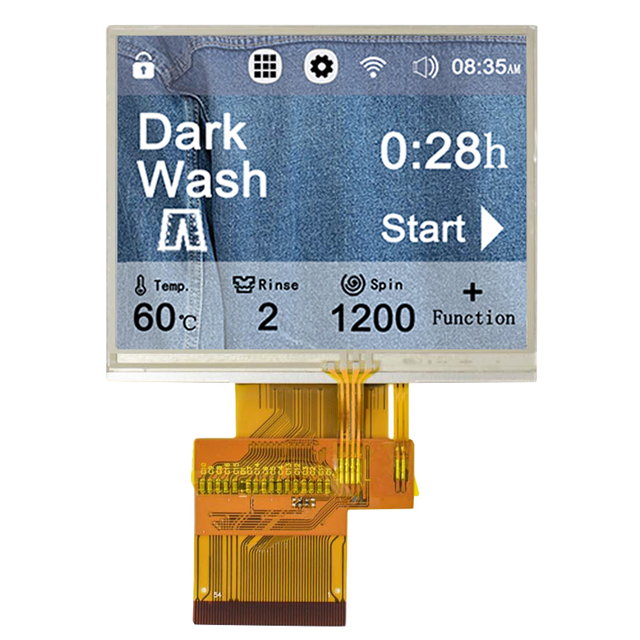

ATM0350D17

Active

AZ Displays

3.5" IPS LCD 240 X 320

Search across all available documentation for this part.

Active

AZ Displays

3.5" IPS LCD 240 X 320

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0350D17

Background Color	White
Backlight	LED
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [custom]	0.07 mm
Dot Pitch [custom]	0.22 mm
Dot Pixels [x]	320 pixels
Dot Pixels [y]	240 pixels
Dot Size [y]	0.22 mm
Dot Size [z]	0.22 mm
Graphics Color	Green, Red, Blue
Interface	Parallel
Interface	24 Bit
Viewing Area [x]	70.08 mm
Viewing Area [y]	52.56 mm

Part	Interface	Dot Pixels [y]	Dot Pixels [x]	Backlight	Dot Pitch [custom]	Dot Pitch [custom]	Controller Type	Display Type	Viewing Area [y]	Viewing Area [x]	Background Color	Graphics Color	Display Mode	Dot Size [z]	Dot Size [y]	Interface
AZ Displays ATM0350B47B	MCU RGB	240 pixels	320 pixels	LED	0.07 mm	0.22 mm	SSD2119AM1	TFT - Color TN - Twisted Nematic	55.7 mm	73.2 mm	White	Blue Green Red	Transmissive
AZ Displays ATM0350D17	Parallel	240 pixels	320 pixels	LED	0.07 mm	0.22 mm		TFT - Color IPS (In-Plane Switching)	52.56 mm	70.08 mm	White	Blue Green Red	Transmissive	0.22 mm	0.22 mm	24 Bit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 23.99

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 3.5" (88.90mm) 320 x 240
