E20611300000G

Active

Amphenol Anytek

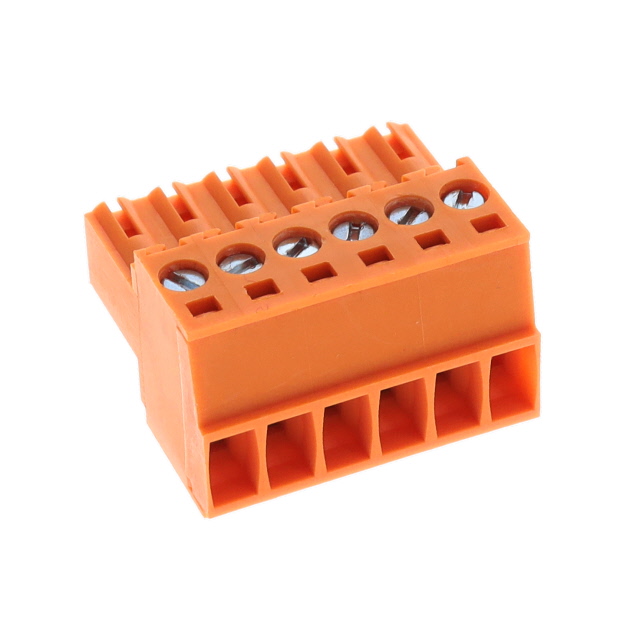

TERM BLOCK PLUG 6POS STR 3.5MM

Search across all available documentation for this part.

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	E20611300000G

Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	10 A
Housing Material	Thermoplastic
Insulation Height	13 mm
Insulation Height	0.512 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	6
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.2 Nm
Torque - Screw	1.7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

Part	Number of Positions	Positions Per Level	Contact Material	Torque - Screw	Torque - Screw	Material Flammability Rating	Type	Number of Levels	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Screw Size	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Termination Style	Mounting Type	Housing Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Voltage - UL
Amphenol Anytek E20611300000G	6	6	Phosphor Bronze	0.2 Nm	1.7 Lb-In	UL94 V-0	Plug Female Sockets	1	3.5 mm	0.138 in	13 mm	0.512 in	M2	Tin	-40 °C	115 °C	14 AWG	28 AWG	10 A	Screw - Rising Cage Clamp	Free Hanging (In-Line)	Thermoplastic	7 mm	6 mm	300 V
Amphenol Anytek E20811300000G	8	8	Phosphor Bronze	0.2 Nm	1.7 Lb-In	UL94 V-0	Plug Female Sockets	1	3.5 mm	0.138 in	13 mm	0.512 in	M2	Tin	-40 °C	115 °C	14 AWG	28 AWG	10 A	Screw - Rising Cage Clamp	Free Hanging (In-Line)	Thermoplastic	7 mm	6 mm	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
