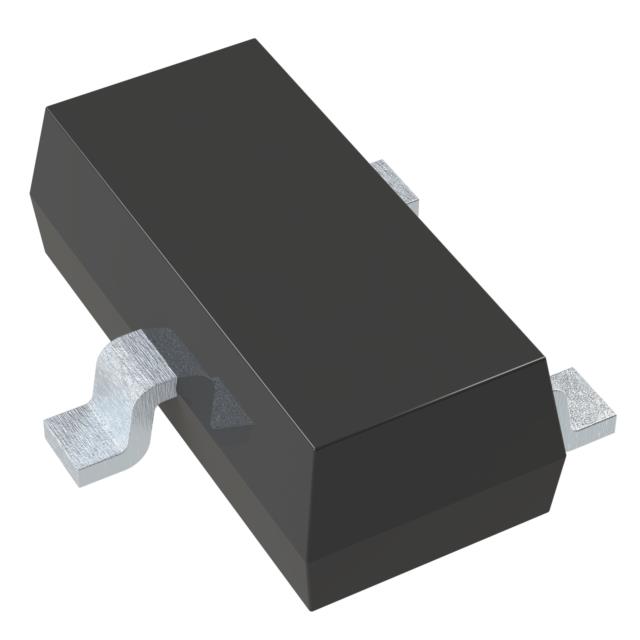

TL431AU-TP
ActiveMicro Commercial Components
IC VREF SHUNT 2.5V SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TL431AU-TP
ActiveMicro Commercial Components
IC VREF SHUNT 2.5V SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TL431AU-TP |
|---|---|
| Current - Cathode [custom] | 1 mA |
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Adjustable |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23 |
| Tolerance | 1 % |
| Voltage - Output (Max) [Max] | 37 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.13 | |
Description
General part information
TL431 Series
Shunt Voltage Reference IC Adjustable 2.5V 37 VV ±1% 100 mA SOT-23
