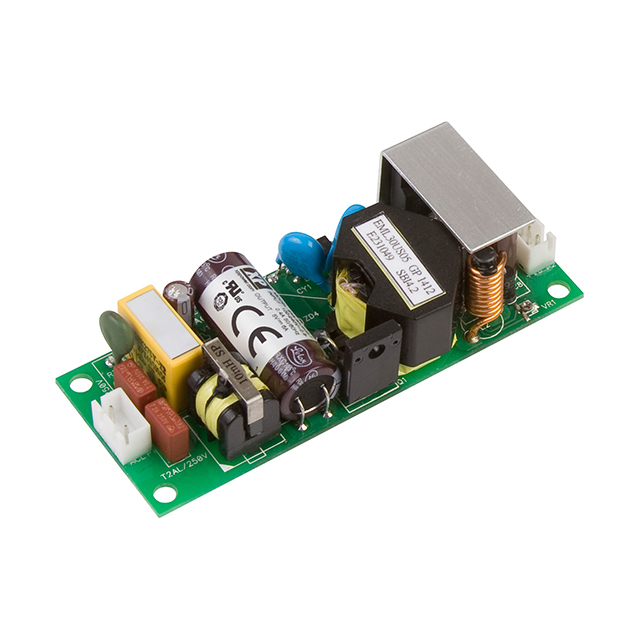

EML30US36-T

Active

XP POWER

AC/DC CONVERTER 36V 30W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 36V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	EML30US36-T

Applications	Medical
Approval Agency	CB
Current - Output 1	830 mA
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	87.9 mm
Size / Dimension [x]	3.46 "
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.6 mm
Size / Dimension [z]	25.4 mm
Size / Dimension [z]	1 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	36 V

Part	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output 1	Power (Watts)	Current - Output 1	Minimum Load Required	Applications	Type	Voltage - Isolation	Features
XP POWER EML30US15-S	87 %	28.5 mm	1.57 "	3.78 "	40 mm	1.12 in	96 mm	Chassis Mount	CB	-20 °C	70 °C	1	15 V	30 W	2 A		Medical	Enclosed	4000 V	DC Input Capable Universal Input
XP POWER EML30US36-T		25.4 mm	1.36 "	3.46 "	34.6 mm	1 "	87.9 mm	Chassis Mount	CB	-20 °C	70 °C	1	36 V	30 W	830 mA		Medical	Open Frame	4000 V	Adjustable Output DC Input Capable Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 36V 85 ~ 264 VAC Input
