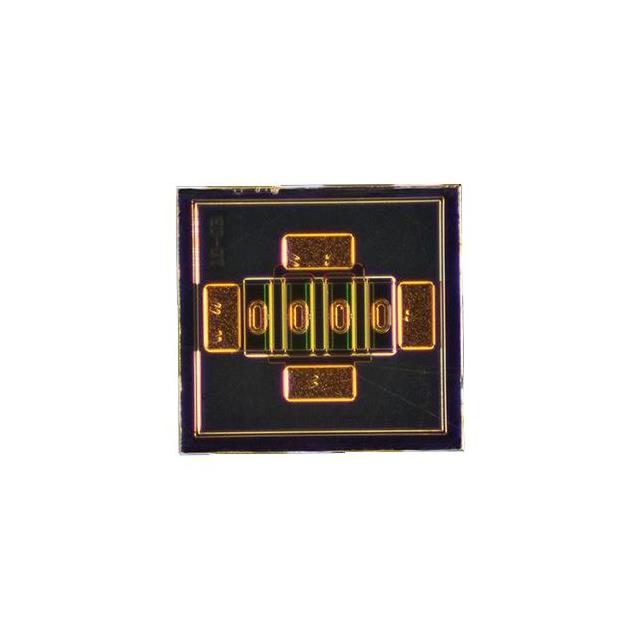

CGHV1J006D-GP4

Active

MACOM Technology Solutions

RF MOSFET HEMT 40V DIE

Search across all available documentation for this part.

Active

MACOM Technology Solutions

RF MOSFET HEMT 40V DIE

Technical Specifications

Parameters and characteristics for this part

Part	Gain	Frequency	Current - Test	Voltage - Rated	Power - Output	Technology	Package / Case	Voltage - Test	Supplier Device Package	Current Rating (Amps)	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Supplied Contents	Type	Contents
MACOM Technology Solutions CGHV1J025D-GP4	17 dBi	18 GHz	120 mA	100 V	25 W	HEMT	Die	40 V	Die
MACOM Technology Solutions CGHV1J070D-GP4	17 dBi	18 GHz	360 mA	100 V	70 W	HEMT	Die	40 V	Die
MACOM Technology Solutions CGHV1F025S	11.6 dBi		150 mA	100 V	29 W	HEMT	12-VFDFN Exposed Pad	40 V	12-DFN (4x3)	2 A	15 GHz	0 Hz
MACOM Technology Solutions CGHV1F025S-AMP1											15 GHz	0 Hz	CGHV1F025	Partially Populated Board - Main IC Not Included	HEMT
MACOM Technology Solutions CGHV1F006S-AMP3											18 GHz	0 Hz	CGHV1F006	Partially Populated Board - Main IC Not Included	HEMT	Partially Populated Board(s) - Main IC/Module/Part Not Included
MACOM Technology Solutions CGHV1J006D-GP4	17 dBi	18 GHz	30 mA	100 V	6 W	HEMT	Die	40 V	Die

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 40 V 30 mA 18GHz 17dB 6W Die
