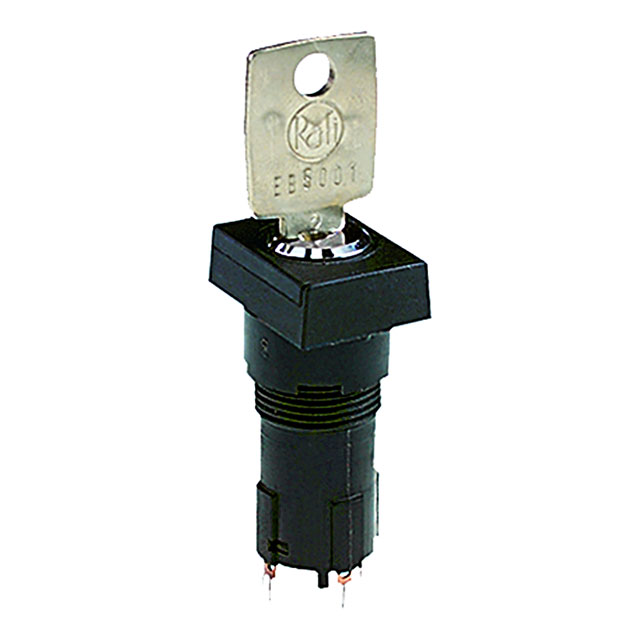

1.10119.1170000

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10119.1170000

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SP3T
Contact Finish	Gold Alloy
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Depth Behind Flange	39.5 mm
Electrical Life	50000 Cycles
Features	Priority Lock Position Keys
Key Removable Positions	Center
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-On-On-On
Termination Style	Solder Lug
Voltage Rating - DC	35 V

Part	Contact Finish	Depth Behind Flange	Circuit	Features	Termination Style	Switch Function	Voltage Rating - DC	Electrical Life	Panel Cutout Dimensions [diameter]	Angle of Throw	Current Rating (Amps)	Key Removable Positions	Actuator Type	Contact Timing	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
RAFI USA 1.10119.1170000	Gold Alloy	39.5 mm	SP3T	Priority Lock Position Keys	Solder Lug	Off-On-On-On	35 V	50000 Cycles	16.2 mm	90 °	100 mA	Center	Flat Key	Not Specified	4	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Keylock Switch 4 Position SP3T 100mA (AC/DC) 35 VAC 35 VDC Panel Mount
