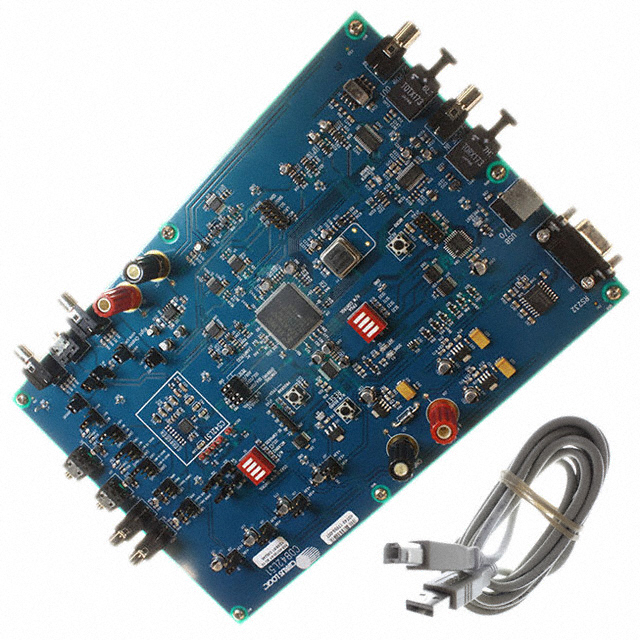

CDB42L51

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS42L51

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

EVAL BOARD FOR CS42L51

Technical Specifications

Parameters and characteristics for this part

Specification	CDB42L51

Contents	Board(s)
Embedded	Yes, Other
Function	CODEC
Primary Attributes	Digital Audio Transmitter and Receiver, Stereo
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Audio
Utilized IC / Part	CS8406, CS8415, CS42L51

Part	Voltage - Supply, Analog	Supplier Device Package	Data Interface	Package / Case	Mounting Type	Voltage - Supply, Digital	Dynamic Range, ADCs / DACs (db) Typ [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Type	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Resolution (Bits)	Supplied Contents	Function	Utilized IC / Part	Primary Attributes	Embedded	Contents	Secondary Attributes	Operating Temperature [Max]	Operating Temperature [Min]
Cirrus Logic Inc. CS42L51-CNZ	1.8 V 2.5 V	32-QFN-EP (5x5)	PCM Audio Interface	32-QFP	Surface Mount	1.8 V 2.5 V	98 db	98 db	Stereo Audio	2	2	-10 °C	158 °F	24 b
Cirrus Logic Inc. CRD42L51									Audio						Board(s)	CODEC	CS42L51
Cirrus Logic Inc. CS42L51-CNZR	1.8 V 2.5 V	32-QFN-EP (5x5)	PCM Audio Interface	32-QFP	Surface Mount	1.8 V 2.5 V	98 db	98 db	Stereo Audio	2	2	-10 °C	158 °F	24 b
Cirrus Logic Inc. CDB42L51									Audio						Board(s)	CODEC	CS42L51 CS8406 CS8415	Digital Audio Transmitter and Receiver Stereo	Yes Other	Board(s)	Graphical User Interface (GUI)
Cirrus Logic Inc. CS42L51-DNZ	1.8 V 2.5 V	32-QFN (5x5)	Serial	32-VFQFN Exposed Pad	Surface Mount	1.8 V 2.5 V	98 db	98 db	Stereo Audio	2	2			24 b								85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 819.60

General part information

CS42L51, CS8406, CS8415 - CODEC Audio Evaluation Board
