Technical Specifications
Parameters and characteristics for this part
| Specification | LR1LJR22 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 220 mOhms |
| Size / Dimension [diameter] | 2.3 mm |
| Size / Dimension [diameter] | 0.091 " |
| Size / Dimension [x] | 6.2 mm |
| Size / Dimension [x] | 0.244 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.13 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Tape & Box (TB) | 4000 | $ 0.06 | ||
Description
General part information
LR1L Series

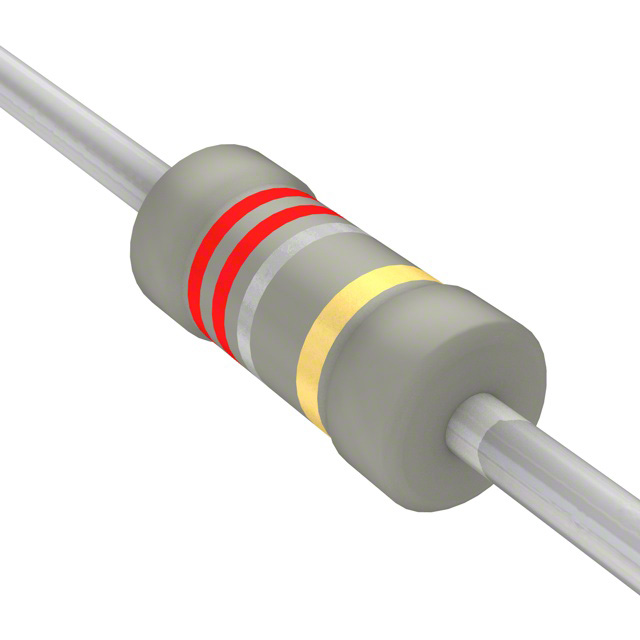

220 mOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
