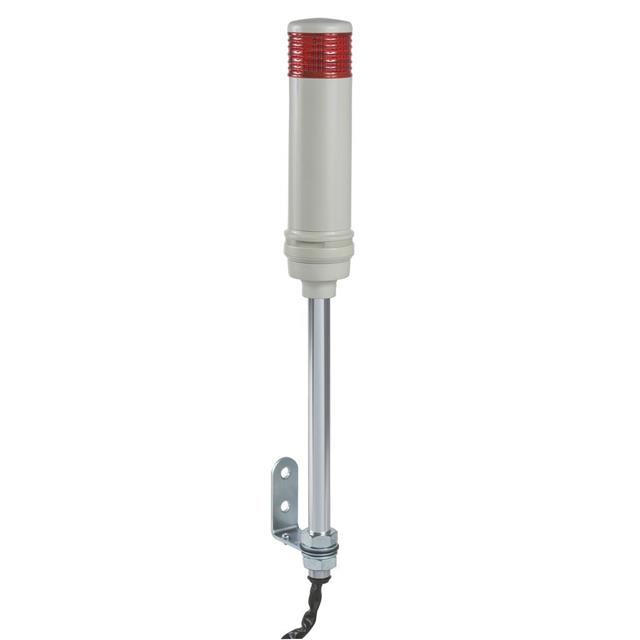

XVC6M1

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT RED LED STEADY

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT RED LED STEADY

Technical Specifications

Parameters and characteristics for this part

Specification	XVC6M1

Function - Lighting	Steady
Ingress Protection	IP23
Light Color	Red
Number of Stacks	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC
Weight	2.1 lb
Weight	952.5 g

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Ingress Protection	Type	Function - Lighting	Number of Stacks	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Light Color	Weight	Weight	Weight
SQUARE D BY SCHNEIDER ELECTRIC XVC6M1K	100 VAC	240 VAC	Wire Leads	IP54 - Dust Protected Water Resistant	Complete Unit	Steady	1	-10 °C	50 °C	Red	439.99 g	0.97 lb
SQUARE D BY SCHNEIDER ELECTRIC XVC6M35S	100 VAC	240 VAC	Wire Leads	IP23	Complete Unit	Flashing Steady	3	-10 °C	50 °C	Green Orange Red	1134 g		2.5 lbs
SQUARE D BY SCHNEIDER ELECTRIC XVC6M3	100 VAC	240 VAC	Wire Leads	IP23	Complete Unit	Steady	3	-10 °C	50 °C	Green Orange Red
SQUARE D BY SCHNEIDER ELECTRIC XVC6M15S	100 VAC	240 VAC	Wire Leads	IP23	Complete Unit	Flashing Steady	1	-10 °C	50 °C	Red
SQUARE D BY SCHNEIDER ELECTRIC XVC6M55SK	100 VAC	240 VAC	Wire Leads	IP54 - Dust Protected Water Resistant	Complete Unit	Flashing Steady	5	-10 °C	50 °C	Blue Clear Green Orange Red	680.4 g	1.5 lb
SQUARE D BY SCHNEIDER ELECTRIC XVC6M1	100 VAC	240 VAC	Wire Leads	IP23	Complete Unit	Steady	1	-10 °C	50 °C	Red	952.5 g	2.1 lb
SQUARE D BY SCHNEIDER ELECTRIC XVC6M3K	100 VAC	240 VAC	Wire Leads	IP54 - Dust Protected Water Resistant	Complete Unit	Steady	3	-10 °C	50 °C	Green Orange Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 443.67

General part information

Stack Light Complete Unit Red LED Wire Leads
