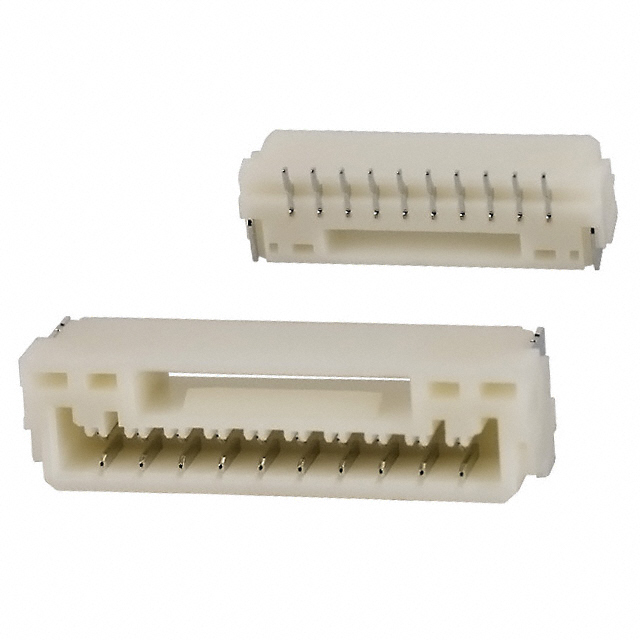

BM10B-GHS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
BM10B-GHS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 10POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM10B-GHS-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Fastening Type | Locking Ramp |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 4.05 mm |
| Insulation Height | 0.159 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Mated Stacking Heights | 7.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
