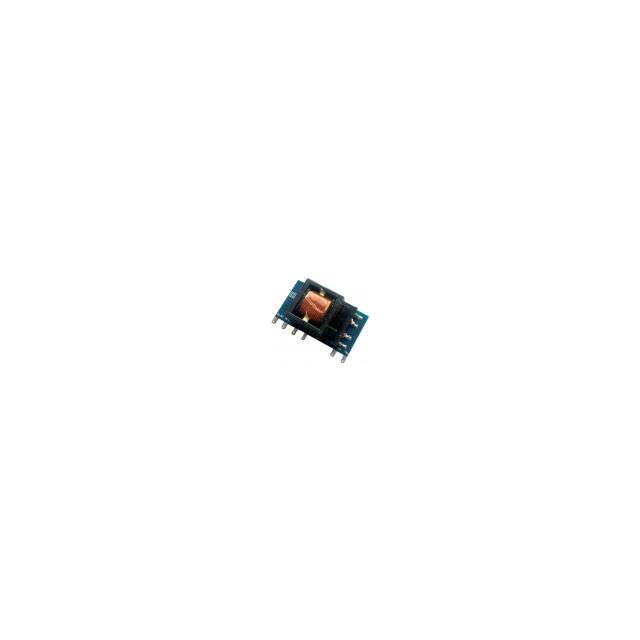

AMEOFL3-12S277HANZ-B
Activeaimtec
AC/DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEOFL3-12S277HANZ-B
Activeaimtec
AC/DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEOFL3-12S277HANZ-B |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 77 % |
| Line Regulation | 1.5 % |
| Load Regulation | 3 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.04 in |
| Size / Dimension [x] | 26.4 mm |
| Size / Dimension [y] | 15.4 mm |
| Size / Dimension [y] | 0.61 in |
| Size / Dimension [z] | 0.47 " |
| Size / Dimension [z] | 12 mm |
| Standard Number | 60335-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 430 VDC, 305 VAC |
| Voltage - Input [Min] | 70 VDC, 85 VAC |
| Voltage - Output 1 | 12 V |
| Weight | 0.008 lb |
| Weight | 3.5 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.29 | |
| 5 | $ 5.64 | |||
| 10 | $ 5.50 | |||
| 15 | $ 5.44 | |||
| 25 | $ 5.33 | |||
| 50 | $ 5.23 | |||
| 75 | $ 4.99 | |||
| 100 | $ 4.39 | |||
| 200 | $ 4.26 | |||
Description
General part information
AMEOFL3 Series
Open Frame AC DC Converters 1 Output 12V 250mA 85 ~ 305 VAC, 70 ~ 430 VDC Input
Documents
Technical documentation and resources
