RL01-R12PE

Obsolete

JAE Electronics

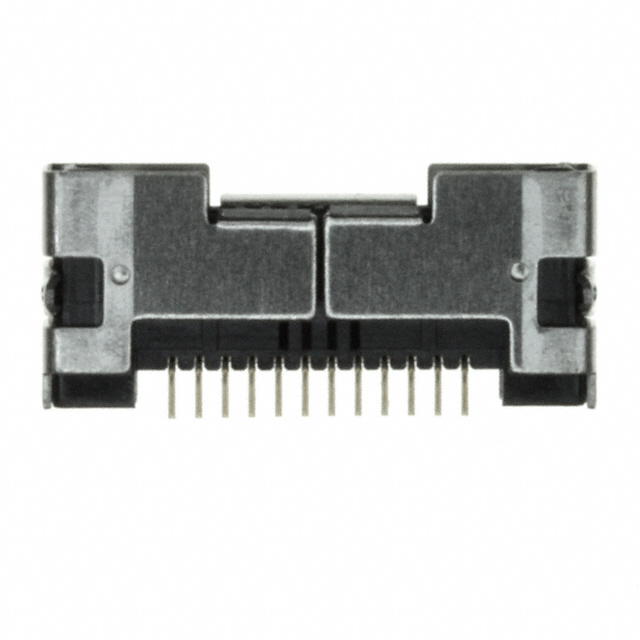

CONN RCPT 12P 0.031 GOLD SMD R/A

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 12P 0.031 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RL01-R12PE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Contact Type	Center Strip Contact
Fastening Type	Friction Lock
Features	Shielded, Board Guide
Insulation Height	0.114 "
Insulation Height	2.9 mm
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Height	Insulation Height	Termination	Insulation Material	Features	Contact Finish - Mating	Number of Positions	Mounting Type	Fastening Type	Contact Finish - Post	Connector Type	Style	Number of Positions Loaded	Contact Type	Contact Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Mating
JAE Electronics RL01-R12PE	0.114 "	2.9 mm	Solder	Polyphenylene Sulfide (PPS)	Board Guide Shielded	Gold	12	Surface Mount Right Angle	Friction Lock	Tin	Receptacle	Board to Cable/Wire	All	Center Strip Contact	Copper Alloy	UL94 V-0	0.031 in	0.8 mm	1	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold
