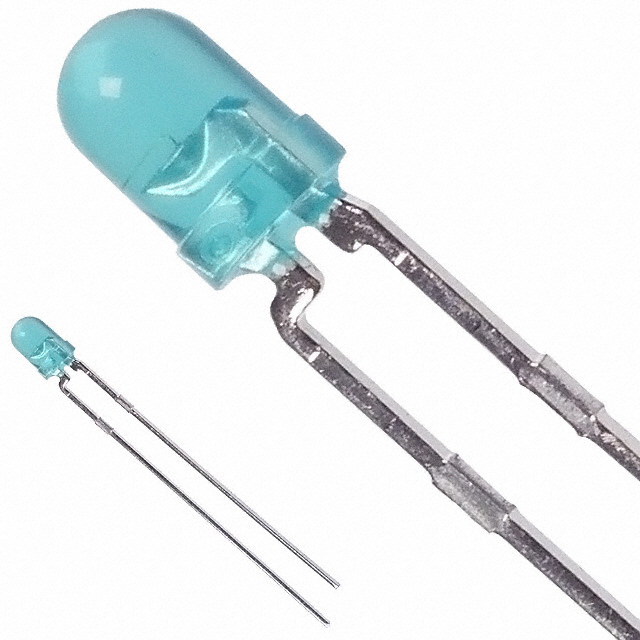

CMD264-UBD
ActiveVisual Communications Company - VCC
LED BLUE DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
CMD264-UBD
ActiveVisual Communications Company - VCC
LED BLUE DIFFUSED T-1 T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD264-UBD |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4.5 mm |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 110 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Viewing Angle | 32 ° |
| Voltage - Forward (Vf) (Typ) | 3.8 V |
| Wavelength - Peak | 428 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.08 | |
| 10 | $ 1.39 | |||
| 100 | $ 1.07 | |||
| 500 | $ 1.06 | |||
Description
General part information
CMD264 Series
Blue LED Indication - Discrete 3.8V Radial
Documents
Technical documentation and resources
No documents available
