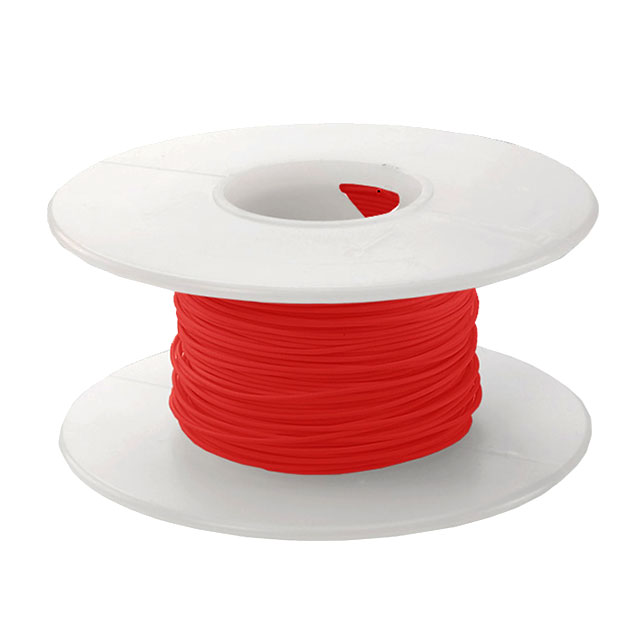

KSW24R-0100

Obsolete

OK INDUSTRIES

WIRE 24 AWG RED 100 FT CSW

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE 24 AWG RED 100 FT CSW

Technical Specifications

Parameters and characteristics for this part

Specification	KSW24R-0100

Conductor Diameter [diameter]	0.019 in
Conductor Diameter [diameter]	0.5 mm
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.03 in
Jacket (Insulation) Diameter [diameter]	0.76 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket Color	Red
Length	30.5 m
Length [x]	100 ft
Operating Temperature	105 C
Ratings	UL Style 1422
Wire Gauge	24 AWG

Part	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Length [x]	Length	Operating Temperature	Jacket (Insulation) Material	Ratings	Conductor Plating	Conductor Material
OK INDUSTRIES KSW24R-0100	Red	24 AWG	0.03 in	0.76 mm	0.019 in	0.5 mm	100 ft	30.5 m	105 C	Polyvinylidene Fluoride (PVDF)	UL Style 1422	Silver	Copper Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 24 AWG Red Polyvinylidene Fluoride (PVDF) 100' (30.5m)
