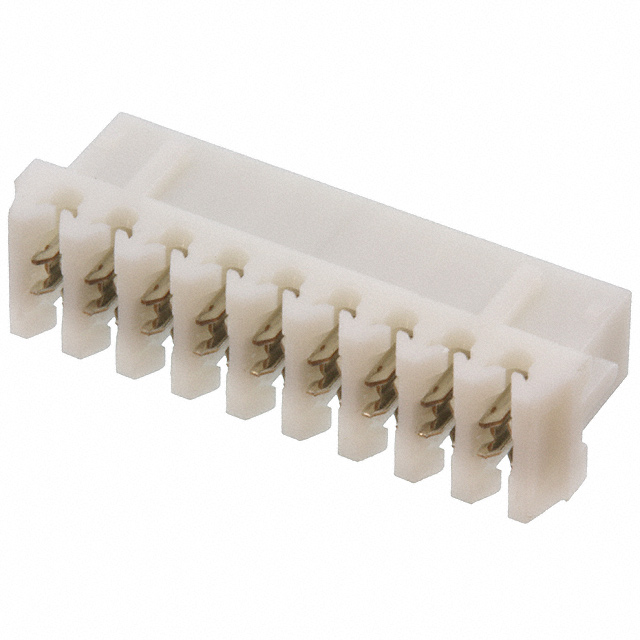

09KR-D6S-P
ActiveJST Sales America Inc.
CONN SOCKET 9POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
09KR-D6S-P
ActiveJST Sales America Inc.
CONN SOCKET 9POS IDC 26AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09KR-D6S-P |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.37 | |||
Description
General part information
09KR Series
9 Position Rectangular Socket Connector IDC Tin 26 AWG
Documents
Technical documentation and resources
