A4044SC

Active

Hoffman Enclosures, Inc.

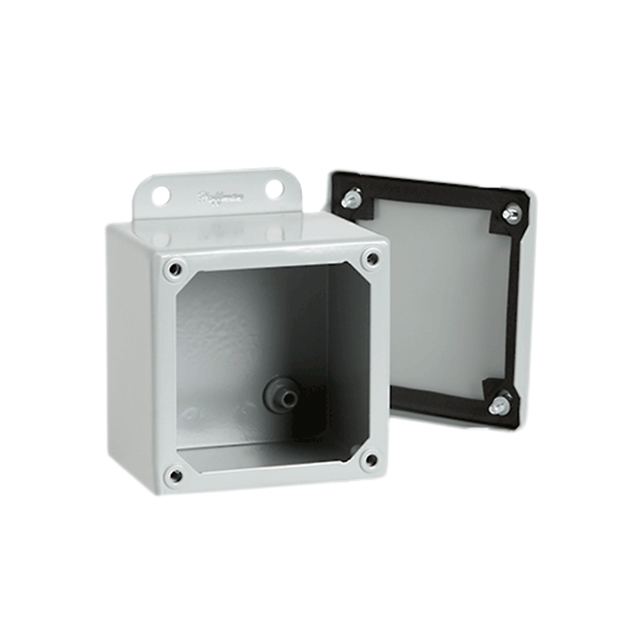

JUNCTION BOX STL 4.02"L X 4.02"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 4.02"L X 4.02"W

Technical Specifications

Parameters and characteristics for this part

Specification	A4044SC

Area (L x W)	104 cm˛
Area (L x W)	16.1 in˛
Color	Gray
Container Type	Junction Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	4.016 in
Height [z]	102 mm
Material	Metal, Steel
Ratings	IP65, NEMA 13, UL-508A, NEMA 12
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.016 "
Size / Dimension [y]	102 mm
Size / Dimension [y]	4.016 in
Thickness	16 Gauge
Weight	952.5 g
Weight	2.1 lb

Part	Area (L x W)	Area (L x W)	Color	Design	Weight	Weight	Container Type	Features	Height [z]	Height [z]	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Ratings
Hoffman Enclosures, Inc. A4044CH	104 cm˛	16.1 in˛	Gray	Hinged Door Lid	997.9 g	2.2 lbs	Junction Box	Sealing Gasket	4.016 in	102 mm	Metal Steel	102 mm	102 mm	4.016 "	4.016 in	16 Gauge	IP65 NEMA 12 NEMA 13 UL-508A
Hoffman Enclosures, Inc. A4044SC	104 cm˛	16.1 in˛	Gray	Cover Included	952.5 g	2.1 lb	Junction Box	PCB Supports Sealing Gasket Wall Mount	4.016 in	102 mm	Metal Steel	102 mm	102 mm	4.016 "	4.016 in	16 Gauge	IP65 NEMA 12 NEMA 13 UL-508A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Cover Included 4.016" L x 4.016" W (102.00mm x 102.00mm) X 4.016" (102.00mm)
