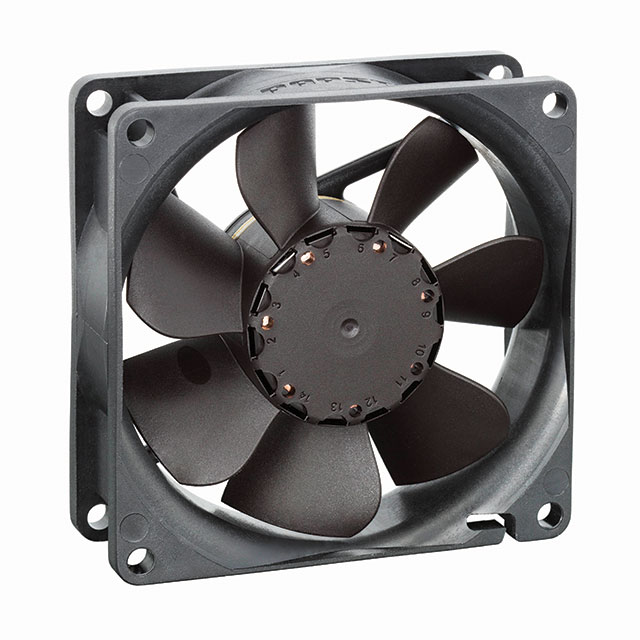

614F/2

Active

ebm-papst Inc.

FAN AXIAL 60X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	614F/2

Air Flow	17.1 CFM
Air Flow	0.479 mł/min
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.1 W
RPM	3900 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	29.94 g
Weight	0.066 lb
Width [x]	15 mm

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Power (Watts)	Voltage - Rated	Air Flow	Air Flow	Features	Material - Frame	Termination	Width [x]	Weight	Weight	Fan Type	RPM	Material - Blade	Lifetime @ Temp.
ebm-papst Inc. 614F/2	60 mm	60 mm	21.6 VDC	26.4 VDC	-20 °C	70 °C	-20 C	70 °C	Sintec	1.1 W	24 VDC	17.1 CFM	0.479 mł/min	Locked Rotor Protection Speed Sensor (Tach)	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	15 mm	29.94 g	0.066 lb	Tubeaxial	3900 RPM	Fiberglass Reinforced Nylon Polyamide (PA)	50000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Sintec 17.1 CFM (0.479m³/min) 3 Wire Leads
