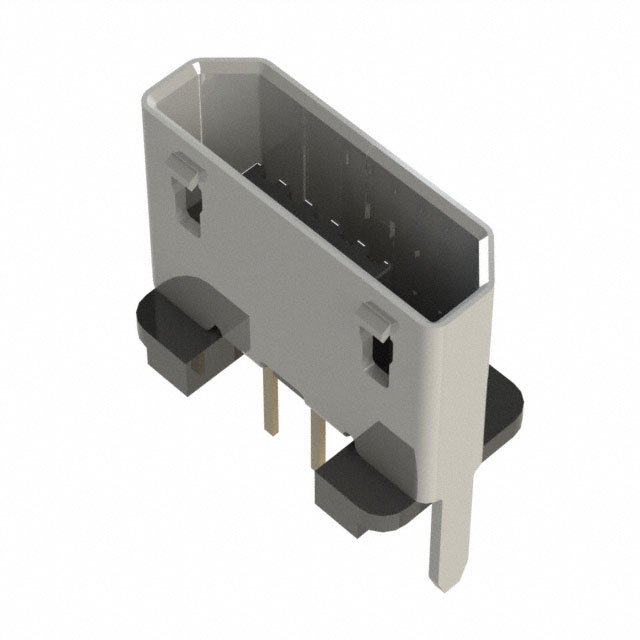

USB3145-30-0-A

Active

GCT

MICRO B SKT, VERTICAL, TH, 30"

Search across all available documentation for this part.

Active

GCT

MICRO B SKT, VERTICAL, TH, 30"

Technical Specifications

Parameters and characteristics for this part

Specification	USB3145-30-0-A

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 1 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Connector Type	Mating Cycles	Number of Contacts	Insulation Color	Shell/Shielding Material	Mounting Feature	Gender	Shielding	Mounting Type	Specifications	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Current Rating (Amps)	Number of Ports	Termination	Contact Finish
GCT USB3145-30-0-A	USB - micro B	10000	5	Black	Stainless Steel	Vertical	Receptacle	Shielded	Through Hole	USB 2.0	UL94 V-0	-30 ░C	85 °C	30 VAC	1 A 1.8 A	1	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7800	$ 0.39

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Through Hole
