SCP2207VMU

Active

Freescale Semiconductor - NXP

32-BIT, 347.5MHZ, RISC PROCESSOR, PBGA236

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

32-BIT, 347.5MHZ, RISC PROCESSOR, PBGA236

Technical Specifications

Parameters and characteristics for this part

Specification	SCP2207VMU

Additional Interfaces	SPI, AC’97, UART, I2S, I2C
Core Processor	ARM926EJ-S
Display & Interface Controllers	LCD
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

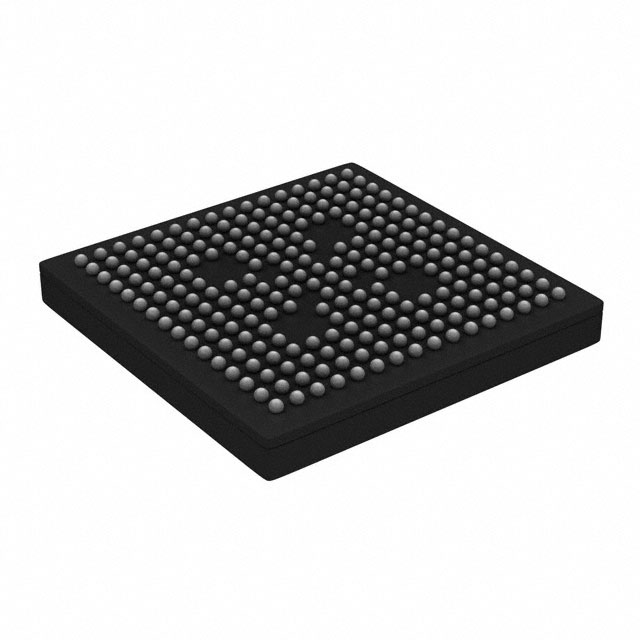

Package / Case	236-LFBGA
RAM Controllers	SDRAM, DDR
Security Features	Cryptography
Supplier Device Package	236-MAPBGA (9x9)
USB	USB 2.0 OTG (1)
Voltage - I/O	2.5 V, 3.3 V, 1.8 V

Part	Number of Cores/Bus Width	USB	Display & Interface Controllers	Graphics Acceleration	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Additional Interfaces	Security Features	Package / Case	RAM Controllers	Supplier Device Package	Mounting Type	Voltage - I/O
Freescale Semiconductor - NXP SCP2207VMU	1 Core 32 Bit	USB 2.0 OTG (1)	LCD		105 °C	-40 °C	ARM926EJ-S	AC’97 I2C I2S SPI UART	Cryptography	236-LFBGA	DDR SDRAM	236-MAPBGA (9x9)	Surface Mount	1.8 V 2.5 V 3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 56.49

General part information

ARM926EJ-S Microprocessor IC - 1 Core, 32-Bit 236-MAPBGA (9x9)
