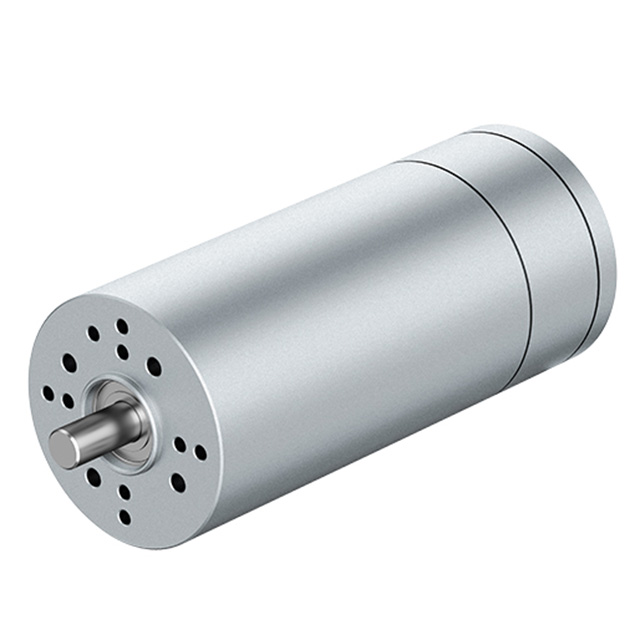

VM.ECI6360DK1

Active

ebm-papst Inc.

STANDARD MOTOR 4000 RPM 48V

Search across all available documentation for this part.

Active

ebm-papst Inc.

STANDARD MOTOR 4000 RPM 48V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Operating Temperature [Max]	Function	Motor Type	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [diameter]	Size / Dimension [diameter]	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Features	Mounting Hole Spacing	Mounting Hole Spacing	Type	Termination Style	Voltage - Rated [custom]	Torque - Rated (oz-in / mNm)
ebm-papst Inc. VM.ECI6340BK4	24 VDC	20 mm	0.787 in	40 °C	Standard	Brushless (BLDC)	84.99 oz-in	600 mNm	2.48 "	63 mm	4000 RPM	6 mm	0.236 in	Integrated Controller	1.929 in	49 mm	DC Motor	Wire Leads
ebm-papst Inc. VM.ECI4240BK1	24 VDC	20 mm	0.787 in	40 °C	Standard	Brushless (BLDC)	31.15 oz-in	220 mNm			4000 RPM	8 mm	0.315 in		1.26 in	32 mm	DC Motor
ebm-papst Inc. VM.ECI6360DK1		20 mm	0.787 in	40 °C	Standard	Brushless (BLDC)		124.6 oz-in	2.48 "	63 mm	4000 RPM				1.929 in	49 mm	DC Motor	Wire Leads	48 VDC	880 mNm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 358.31
